Endgame Gear OP1 Mouse Switch Pack - Set of 2 Switch PCBs + 14 Switches

19.99
22.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          • Compatible with any OP1 that uses mechanical switches (OP1, OP1 RGB, and OP1 8K)
          • Contains 2 switch PCBS and 14 total switches (2 of each kind)
          • Features seven popular pairs of switches along with some lesser-known gems

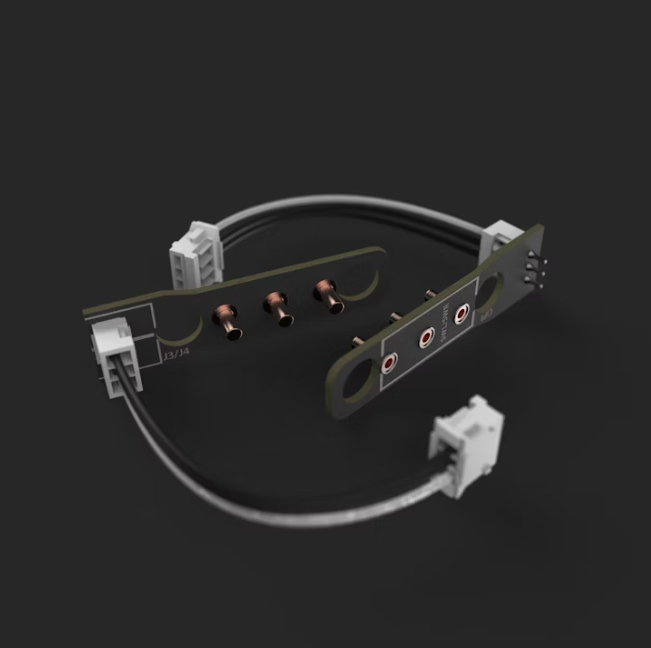

          • Universal switch PCBs are designed to work seamlessly with any 2 or 3 pin mechanical switch that falls within the typical height range of a micro switch used in mice
          To install these switches, simply unscrew the two bottom screws, carefully open the back of the OP1, remove the main button switch cables, fold the shell to the left, and use a PH000 screwdriver to remove the switch PCB screws. Once you've added your preferred switch PCBs to the top shell, reverse the process. And if you're feeling adventurous, you can even use different switches for the left and right click.

          To install the switches to the universal PCB, gently push them into the sockets, ensuring they align correctly and sit flush with the PCB. Remember, if the switches don't click after they're in the mouse, it's likely they're facing the wrong orientation.

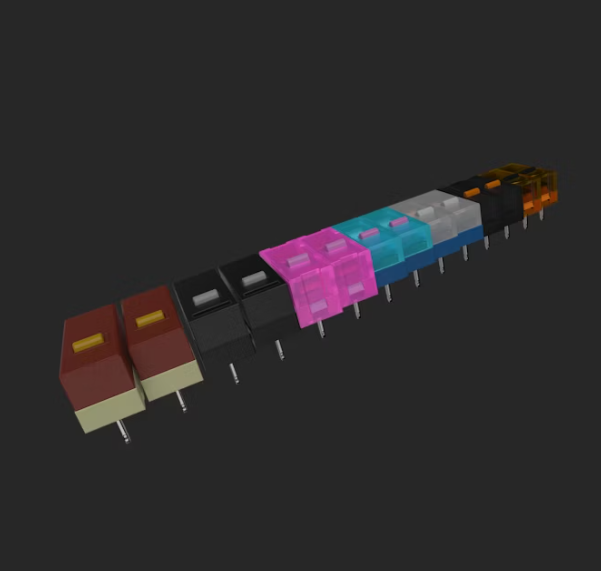

          Contains two switches of each:
          Omron 60m 45-75gf
          Huano 80m 55-60gf
          TTC Dustproof Gold 80m 55-65gf
          Zippy DF3-P1L0 50-80gf
          Huano Silent 20m 50-60gf
          HNCHK 150m 60-70gf
          Huano 100m 50-55gf

          Note: Switch packs with ranges exceeding 10gf are pre-sorted and paired within 5gf ranges, ensuring that both switches in a single pack are within the best possible click force range.
