GB Date: March 29, 20:00 PM EST to April 28, 23:59 PM EST

FREE SHIPPING锛�锛�锛�

�硷��Before purchase, you must read and accept following Terms and Conditions of Cary Works Magnum65 Groupbuy�硷��

1. This is a 'Groupbuy' sale. Upon purchase, you acknowledge that�estimated shipping time is Q4 2024, �and delay may occur due to but limited to conditions like: shipping delay introduced by any unforeseeable production issue.
2. After purchase, you will be charged immediately.
3. Due to the nature of�'Groupbuy' sale�that we will start to arrange production�immediately after sale conclude, we generally do not allow cancellation.�If you do need to cancel before GB ends, we review requests�on a case-by-case basis at our discretion. If cancellation is accepted,�a 3% payment processing fee will be withheld on refund.
4. We reserve the right to cancel orders which we deem violating our sale T&C.
5. This is a keyboard kit and does not come with switches and keycaps.

Index
�
- Intro
- Design
- Structure + Kit
- Build Components + Layout
- Functionality
- Colorways
- Packaging
- Pricing and Vendors

Intro

The�Magnum 65�is a unique keyboard brought to you by CaryWorks which is inspired by the 'Magnum' revolver. Magnum65 is a 65% dual-mode Bluetooth keyboard comprising of 40+ components and featuring a gasket structure.

We are aware of the traction and massive interest in this keyboard and we are delighted to be able to bring it to the international market!� �

Design

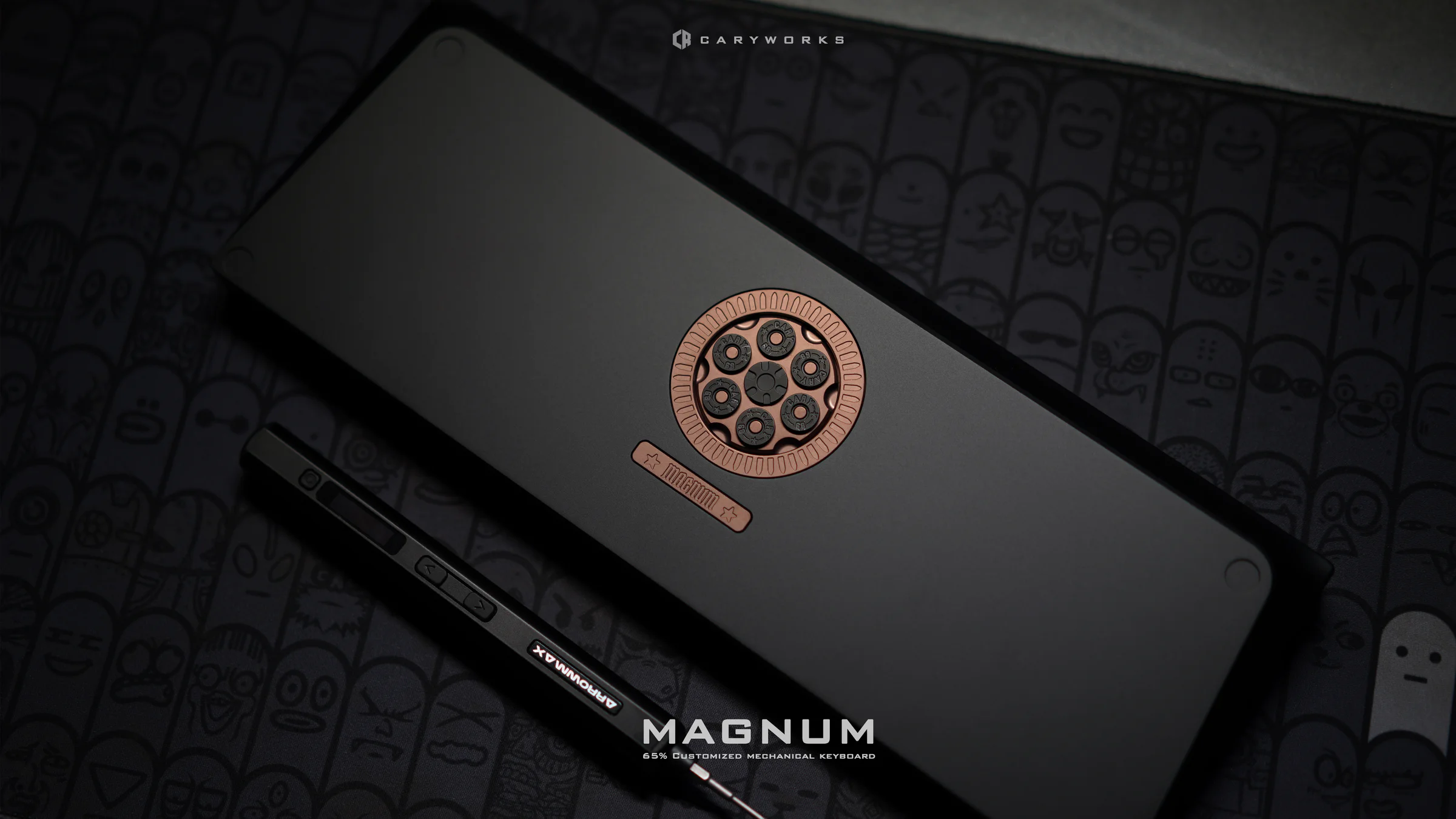

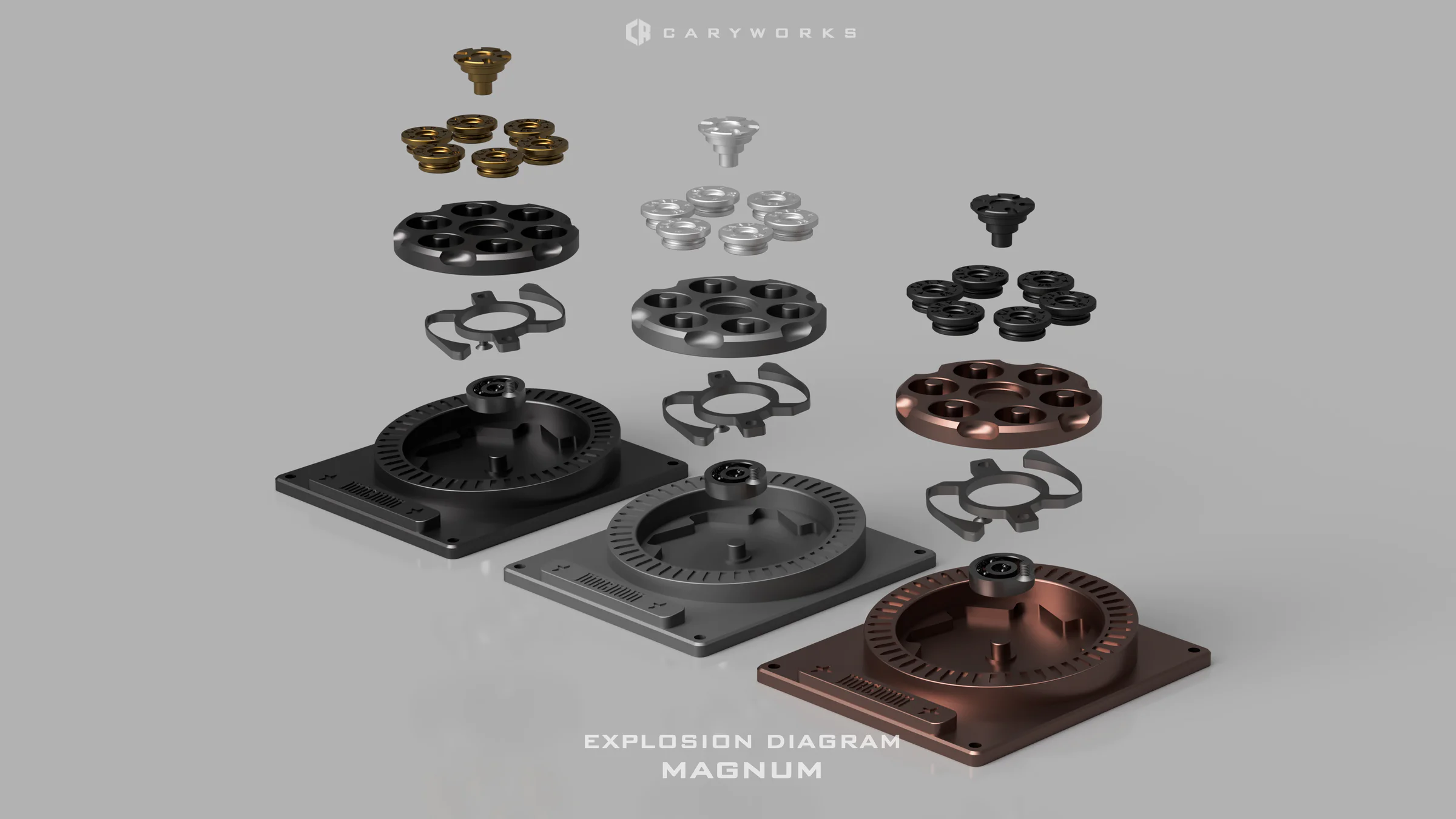

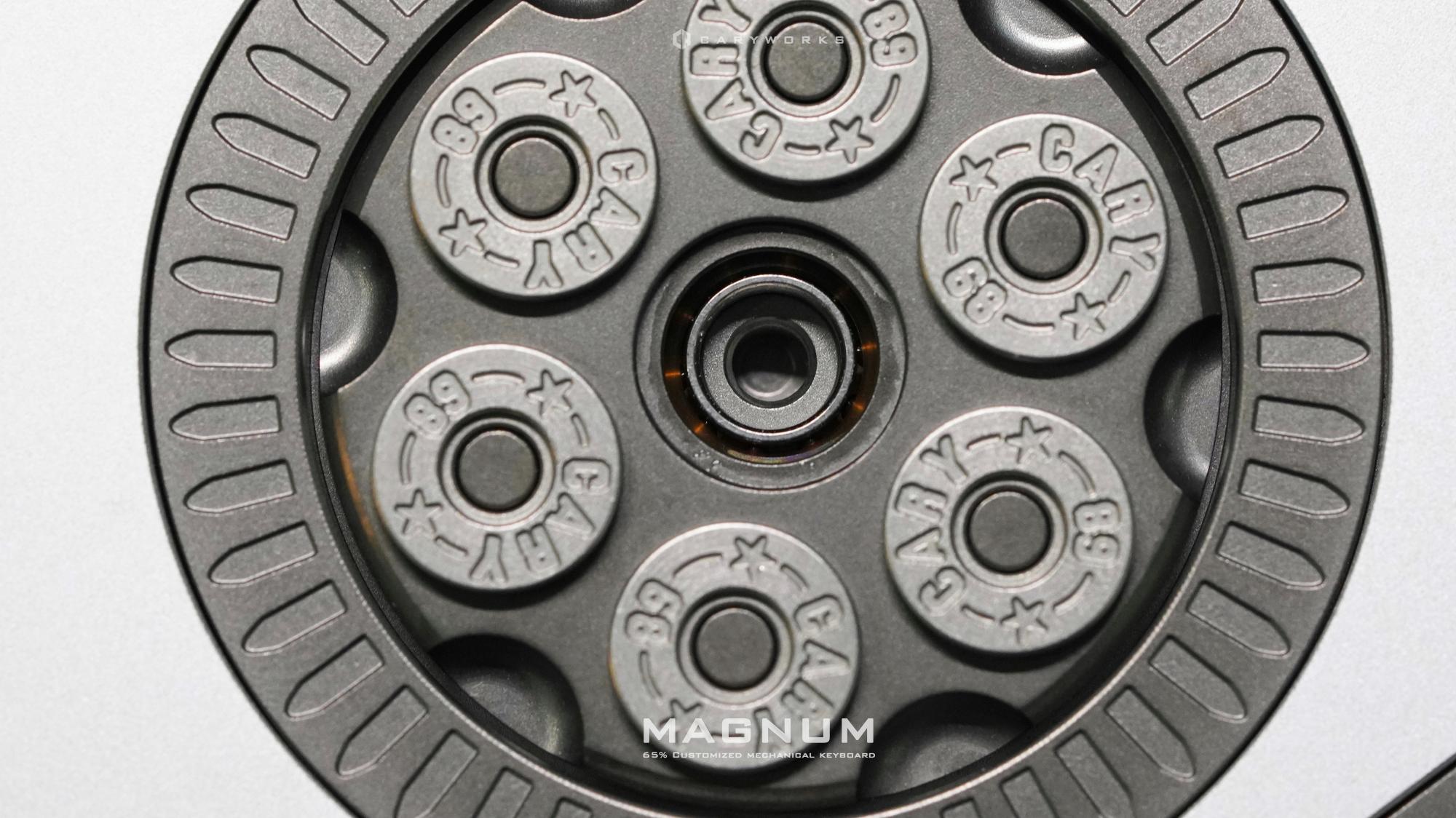

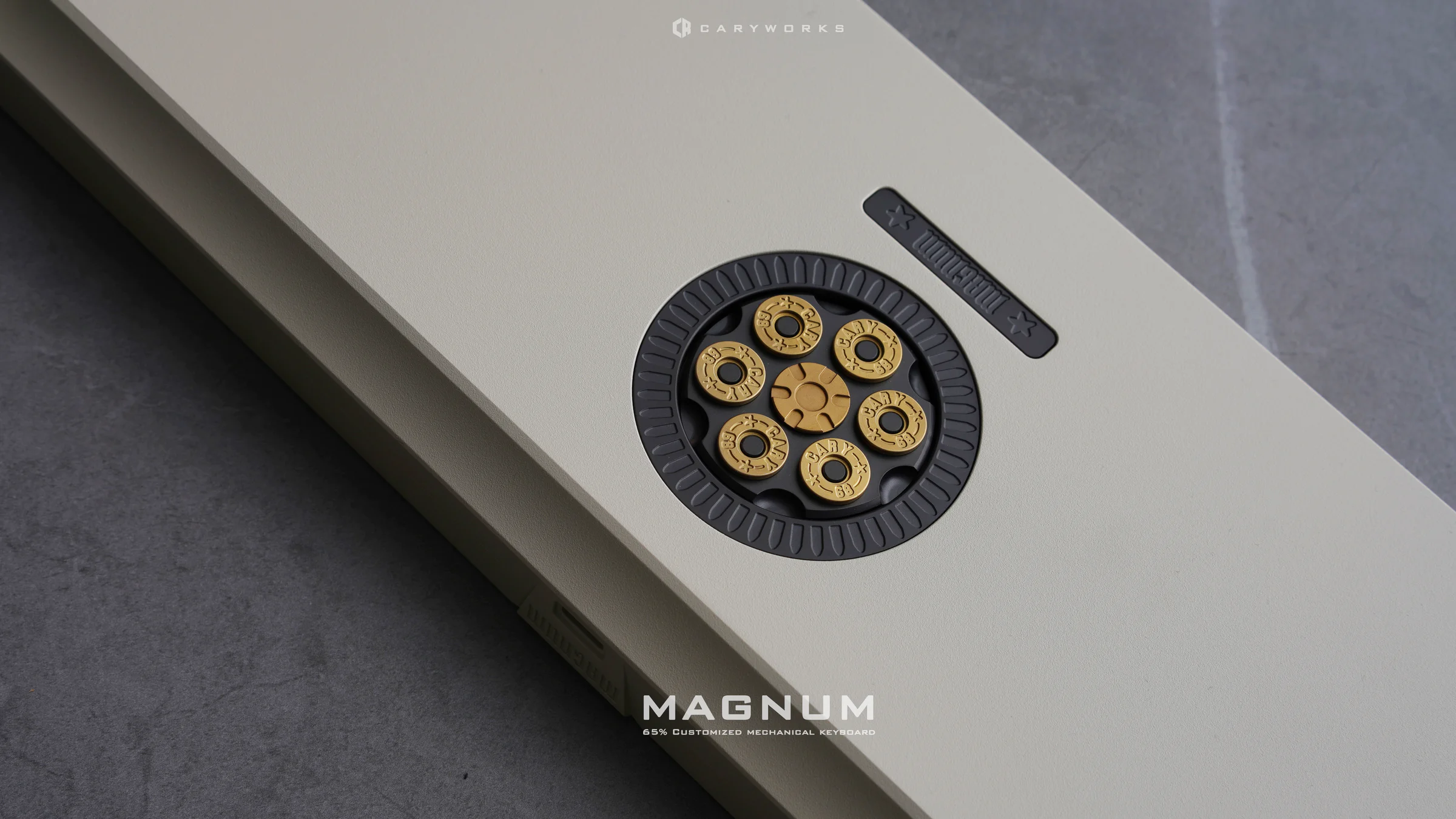

The�Magnum 65�as the name suggests is inspired by the theme of the classic revolver. The revolver cylinder is not purely for looks, it is a piece of engineering art! The cylinder is redesigned into the weight, consisting of 11 components and 8 connectors, retaining the cylinder's ability to rotate; coupled with the detachable bullets, capturing the essence of its rotating motion.

�

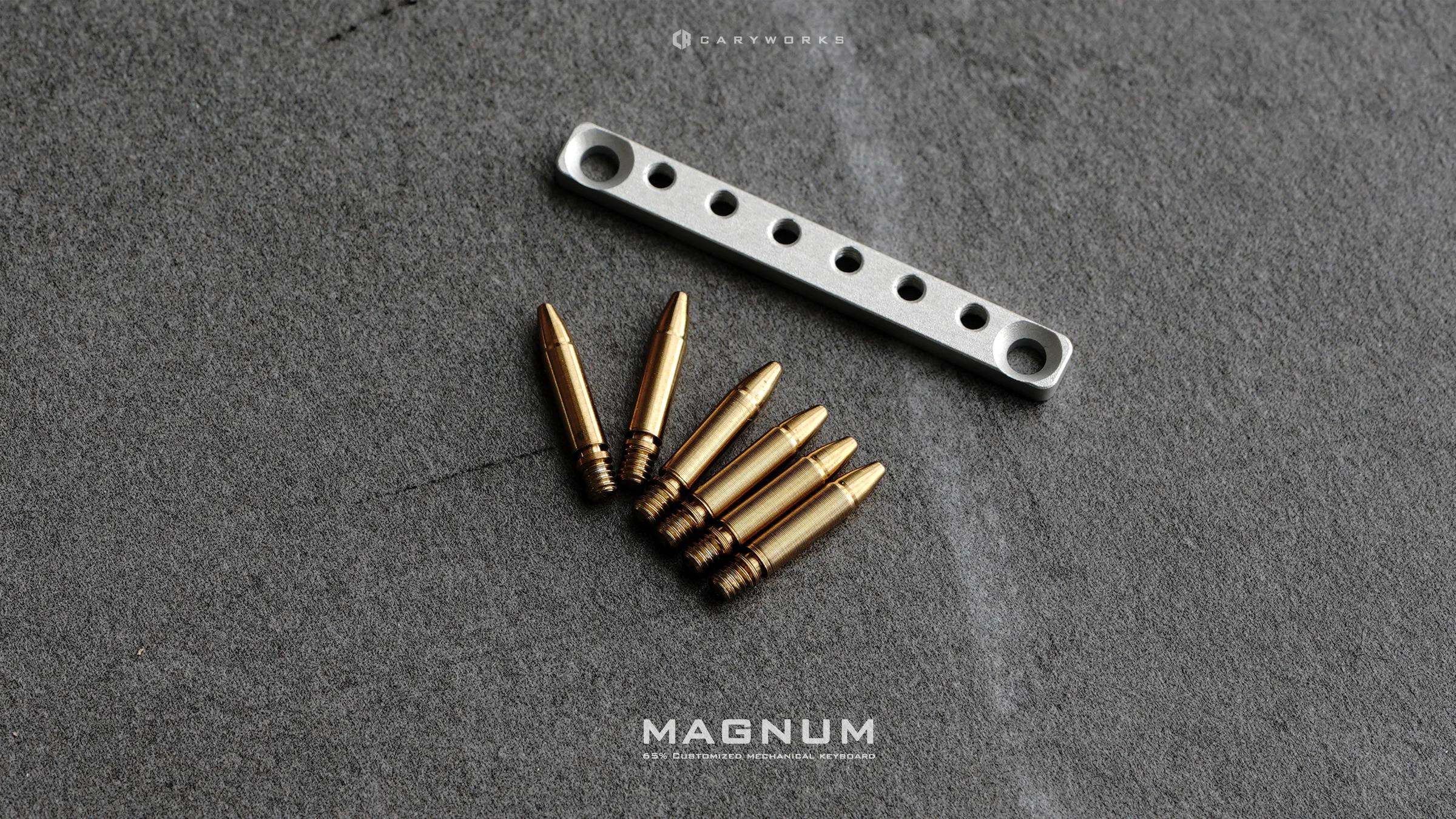

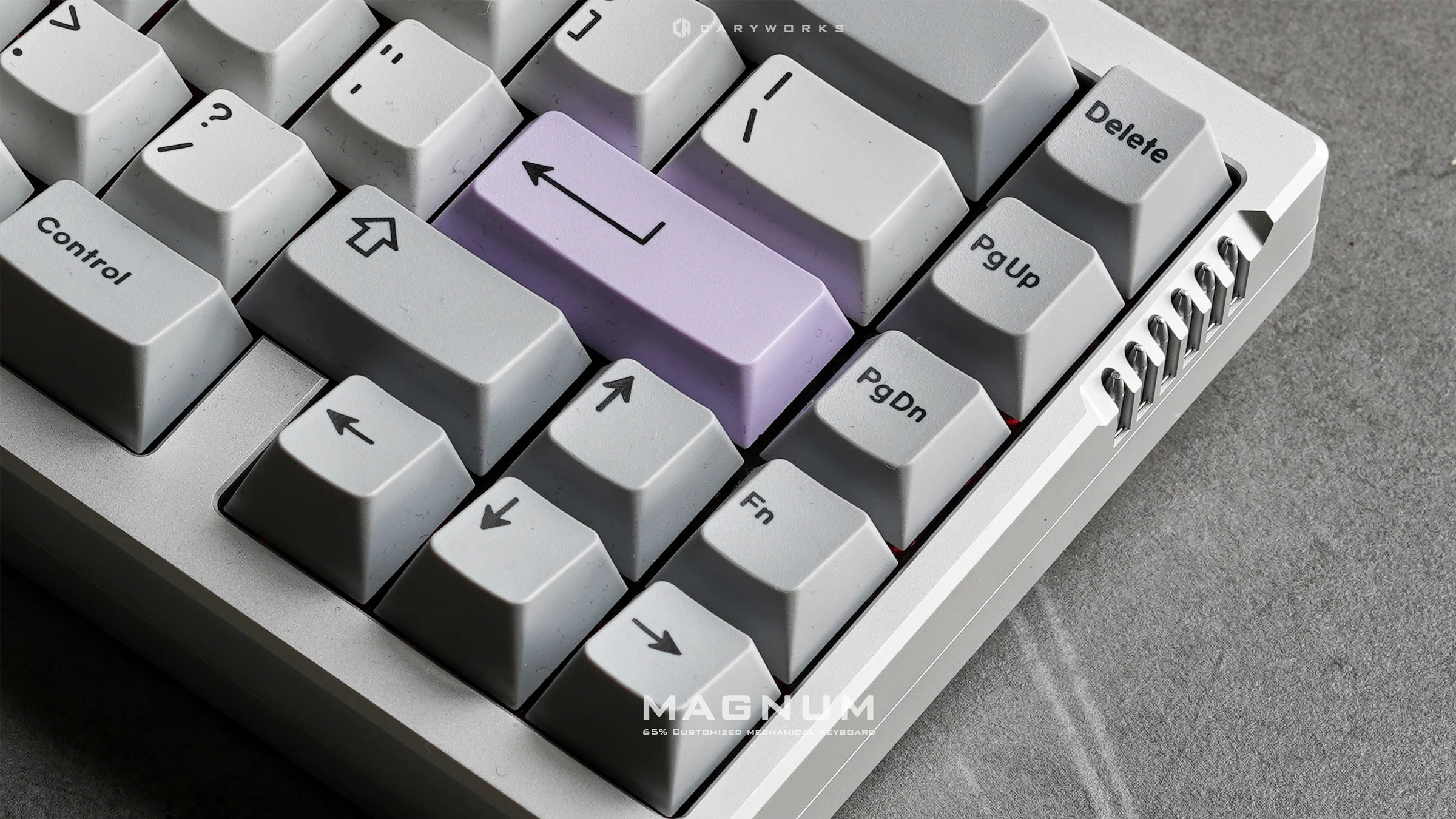

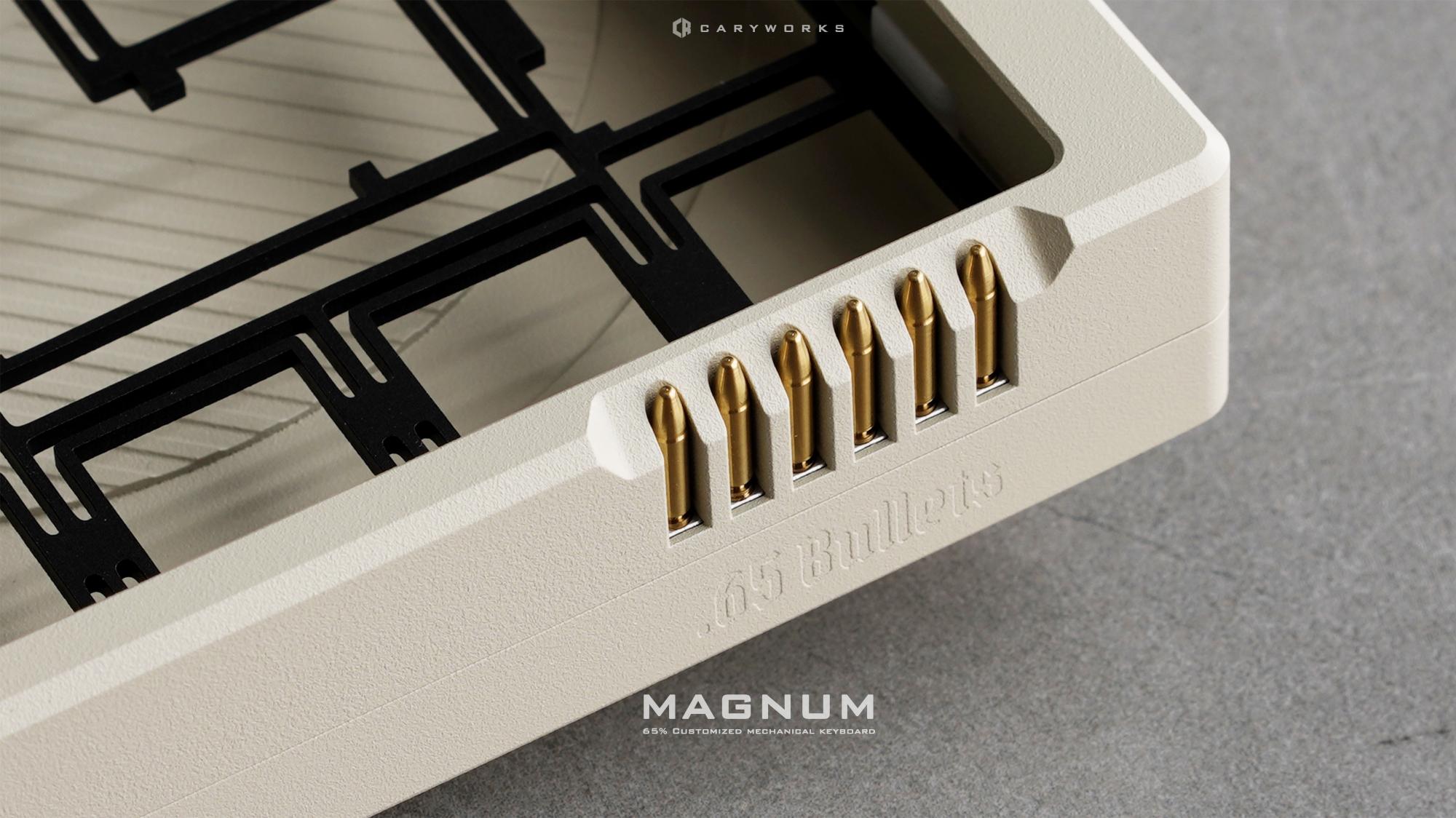

The revolver's quick change magazine is added on the side of the keyboard as an accent, consisting of a base and 6 bullets, making it a beauty from all angles.

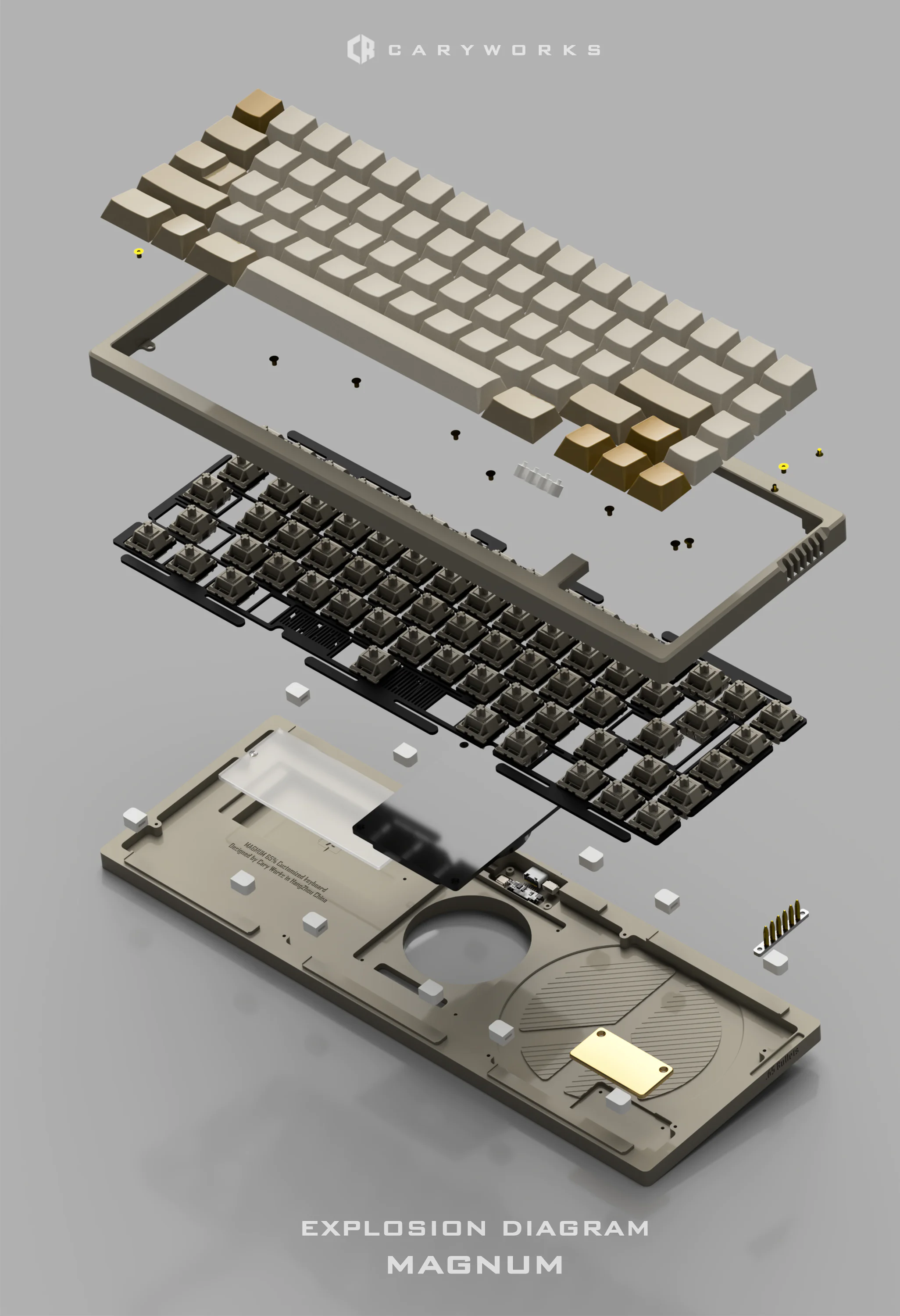

Structure & Components

The design overview of the Magnum 65:

�����The design theme revolves around the revolver, featuring a unique ratchet structure for the cylinder counterweight and a side-mounted magazine design.

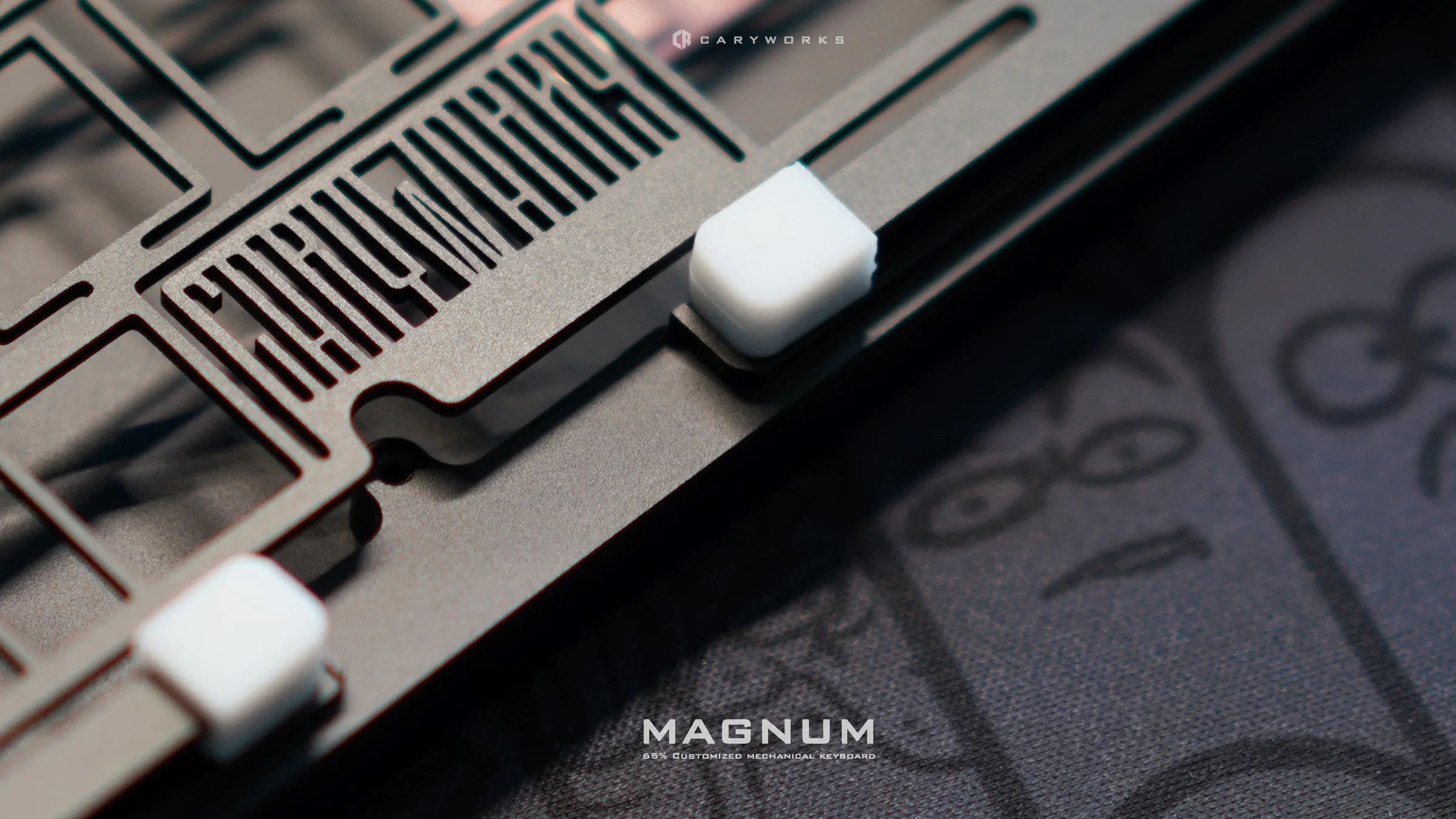

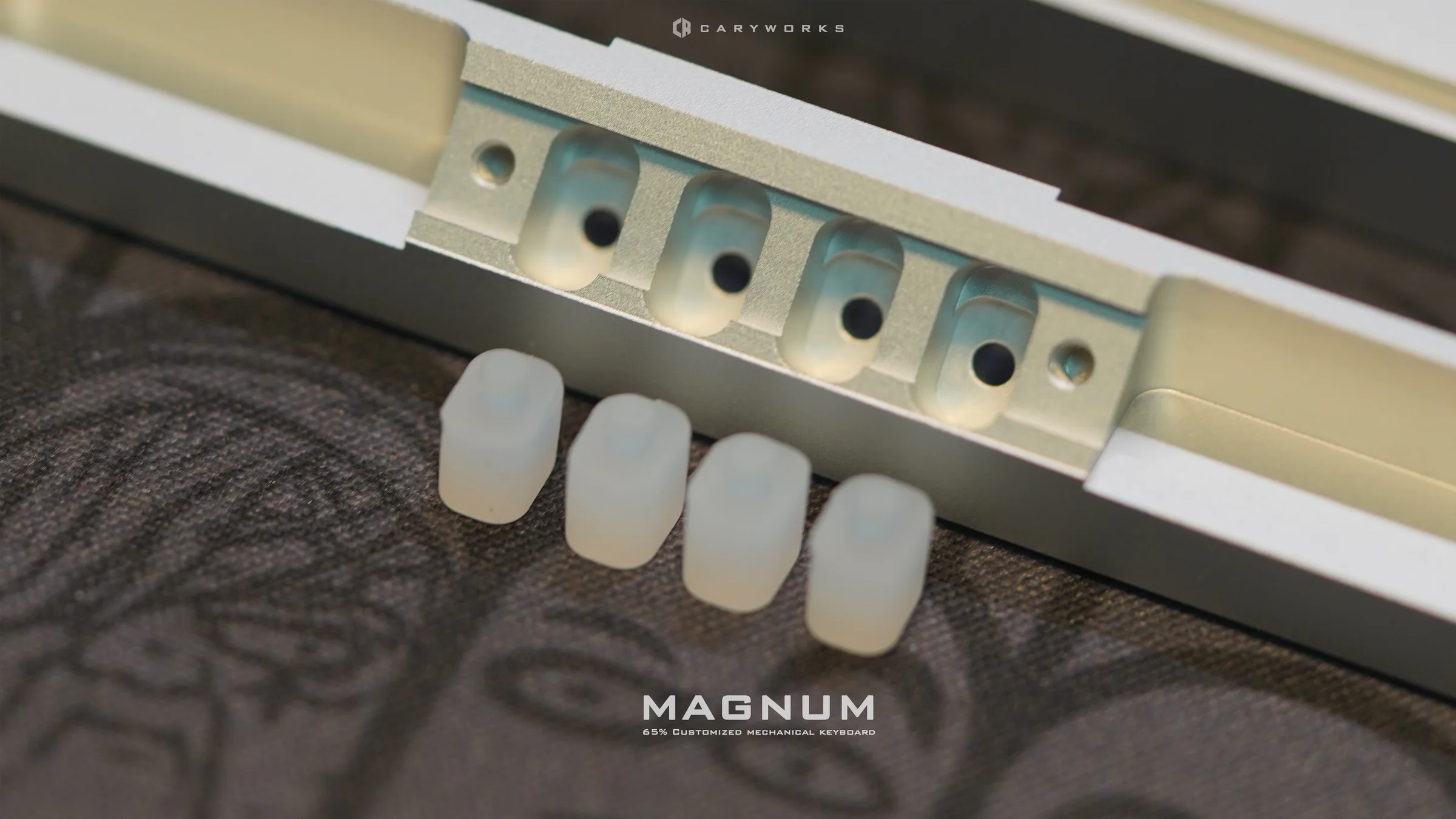

�����Incorporates a Gasket structure with silicone cushioning and spring positioning plate for a softer keystroke feel. The exterior boasts a screw-less design.
�����Supports 4-channel Bluetooth, enabling connection to 4 devices with rapid switching capability.
�����Features an RGB indicator light array.

What the Magnum 65 kit includes:

Main:
�����Upper case;
�����Plate;
�����Base;
�����Side-mounted magazine (with 6 bullets);

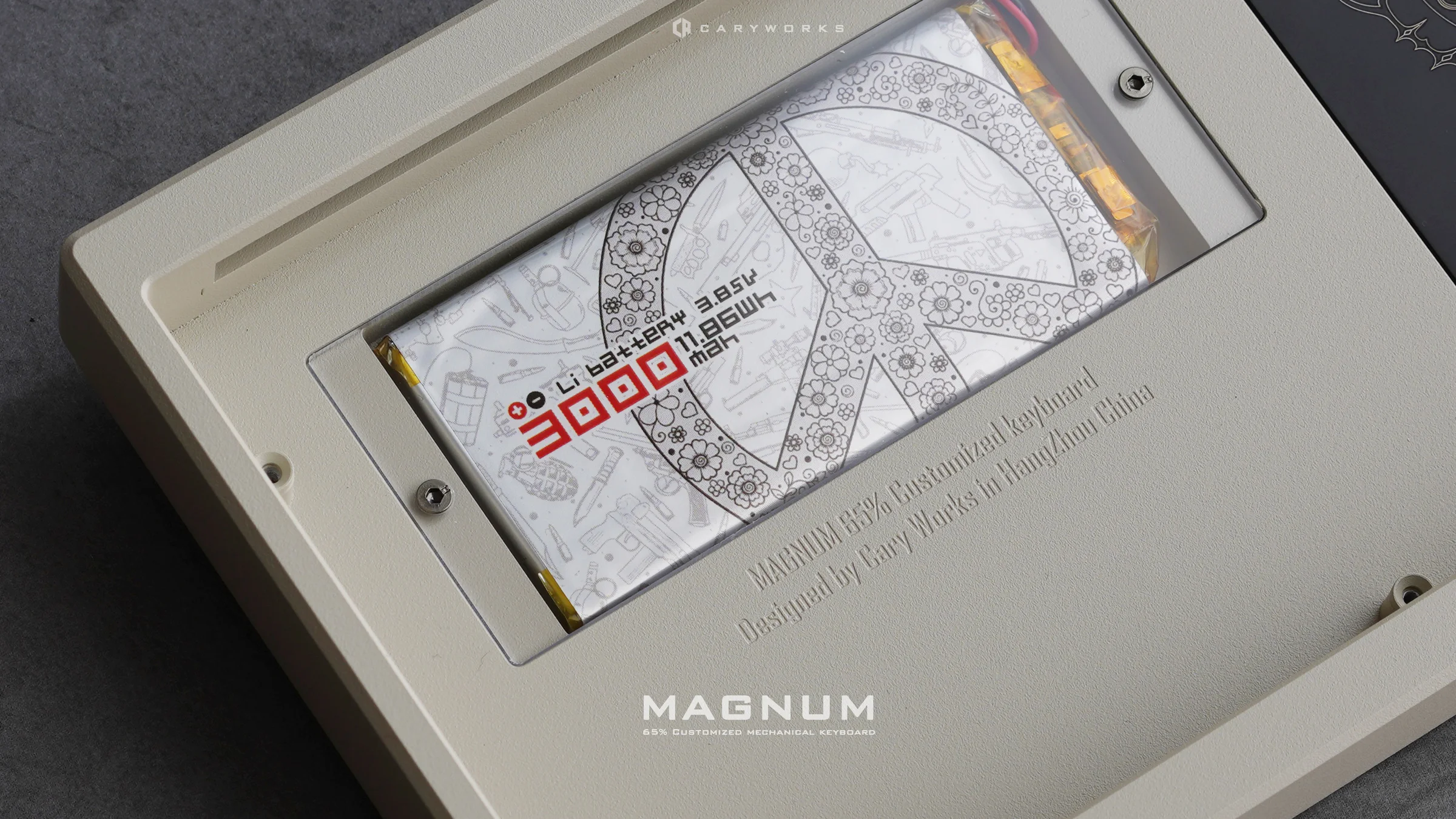

�����Battery, battery cover plate,

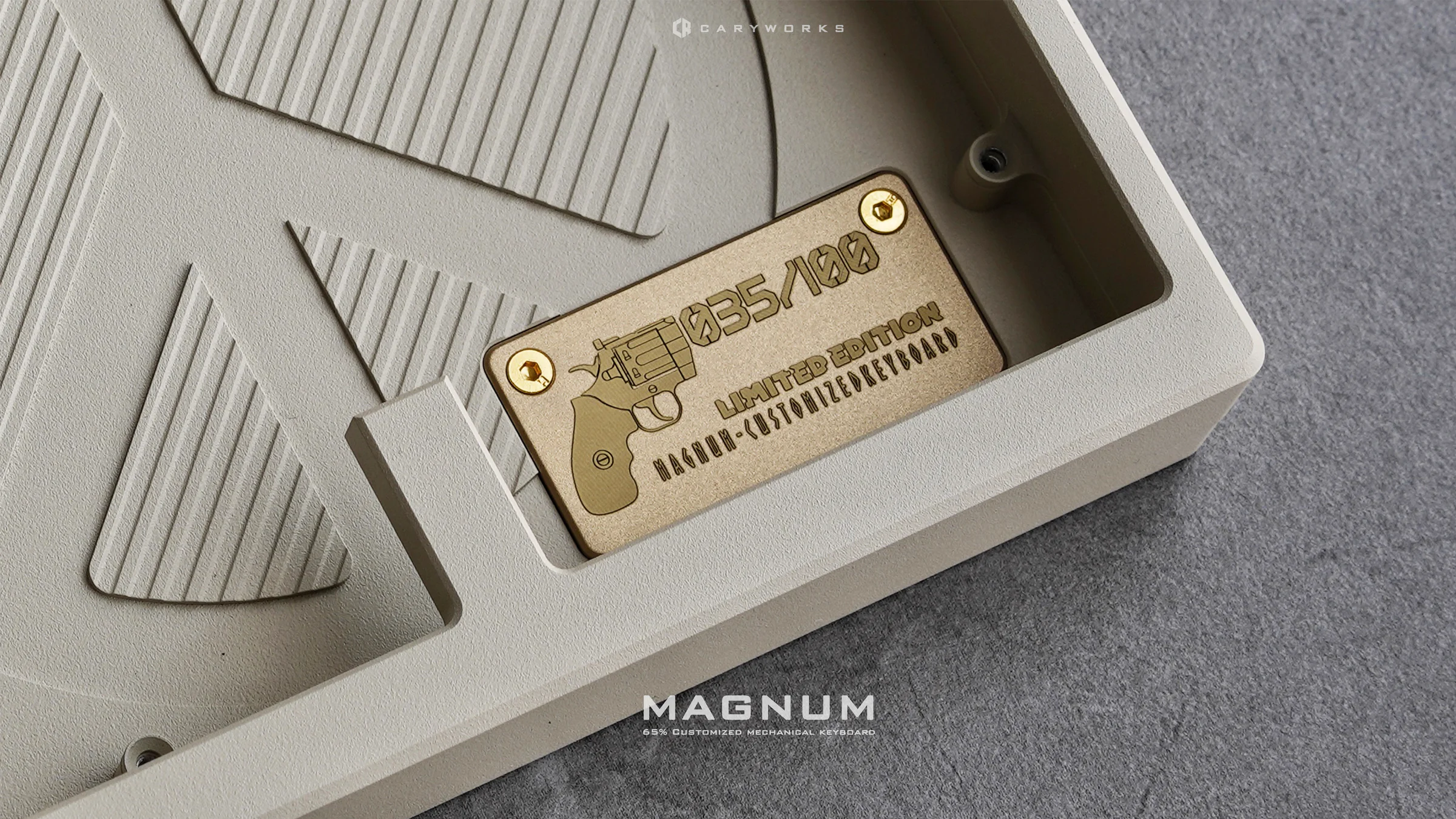

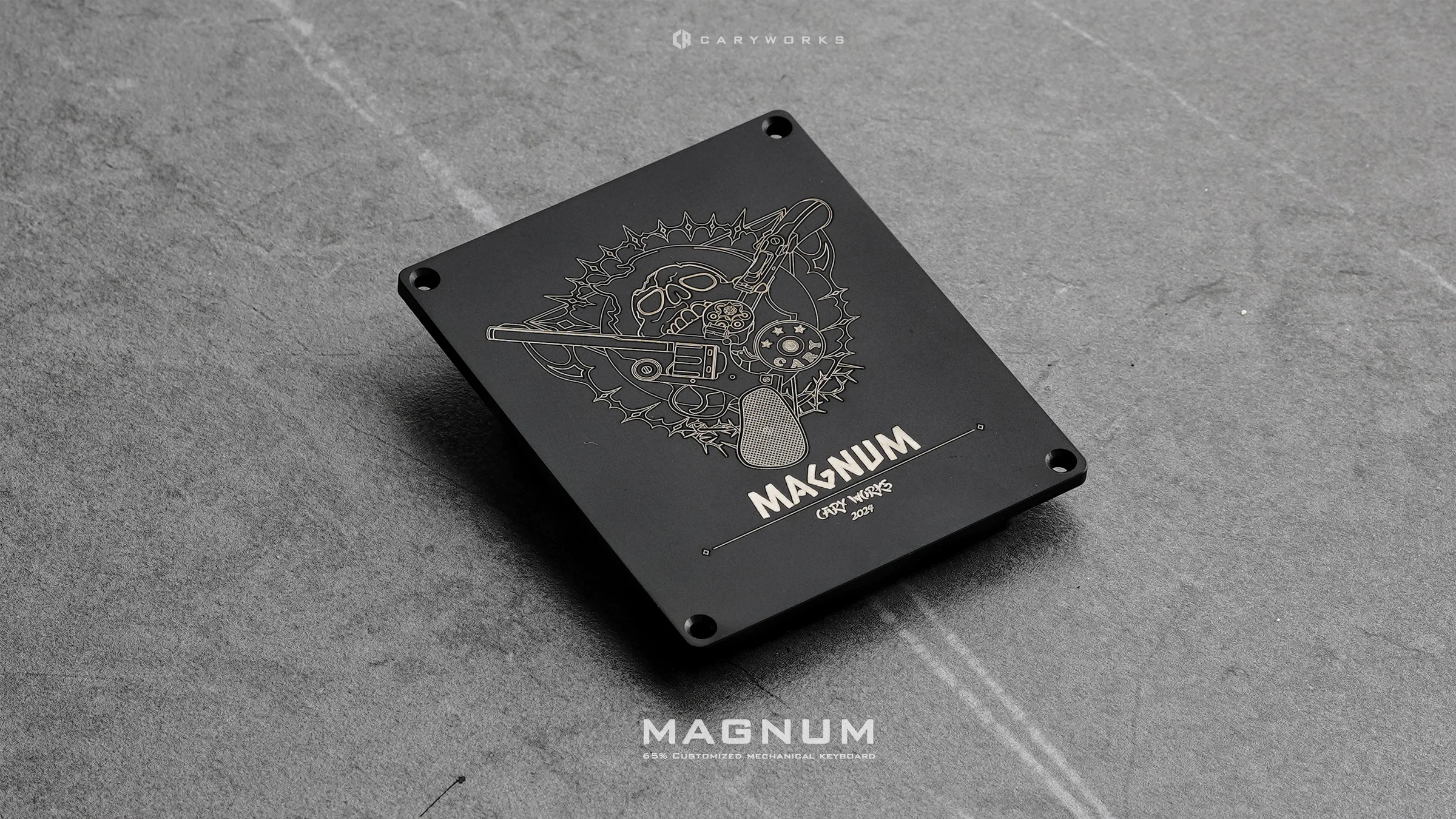

�����Badge;
�����Distributed silicone grains for indicator lights (4 pieces);
�����Foot pads (4 sets of 2).

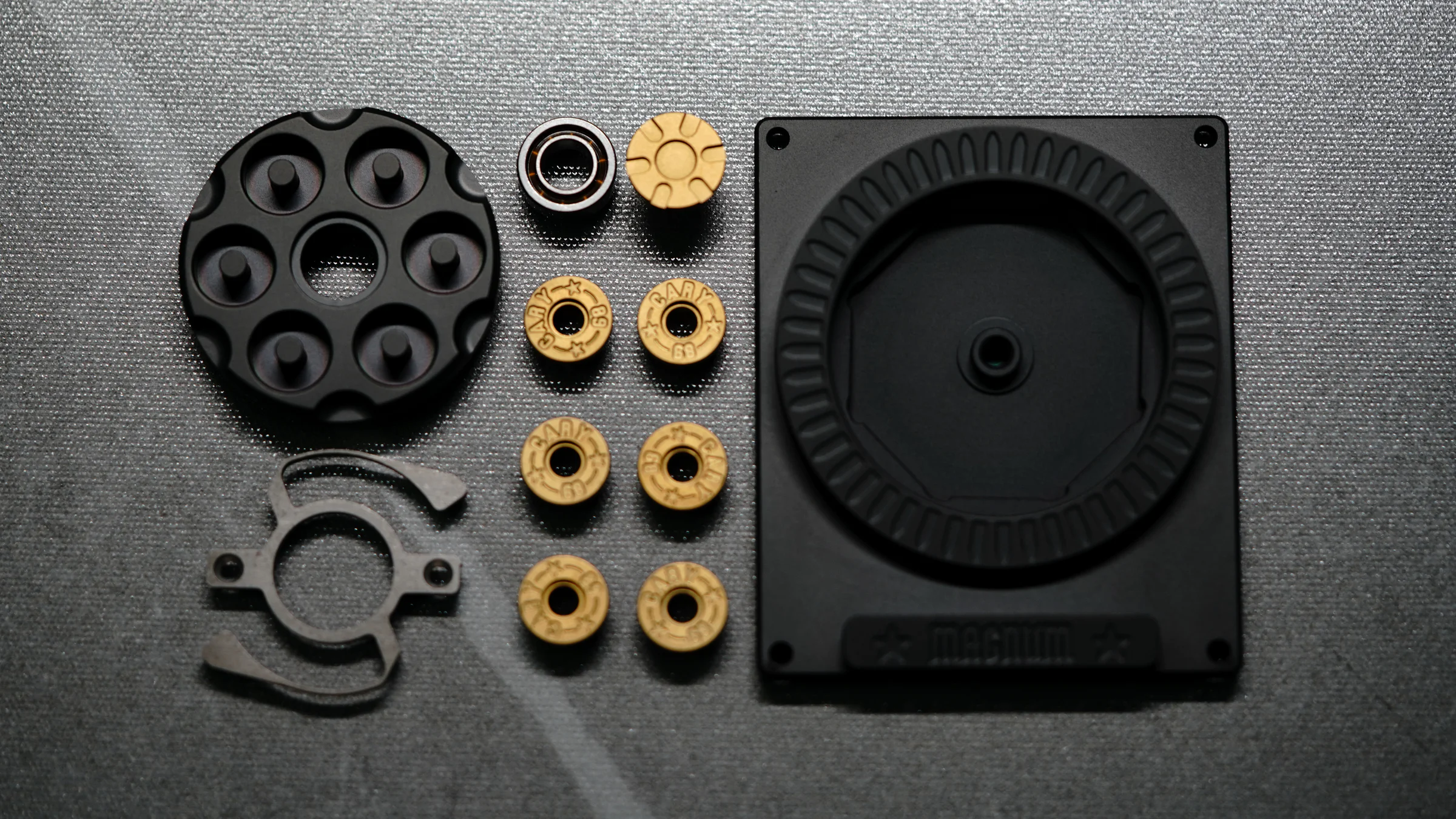

Weight:
�����Base;
�����Cylinder;
�����Bearings;
��� �Spring plates;
�����Bullets (6);
�����Bullet securing rubber rings;
Locking mechanism.

PCB:
�����Bluetooth dual-mode PCB;
�����Power board;
�����Lighting board;

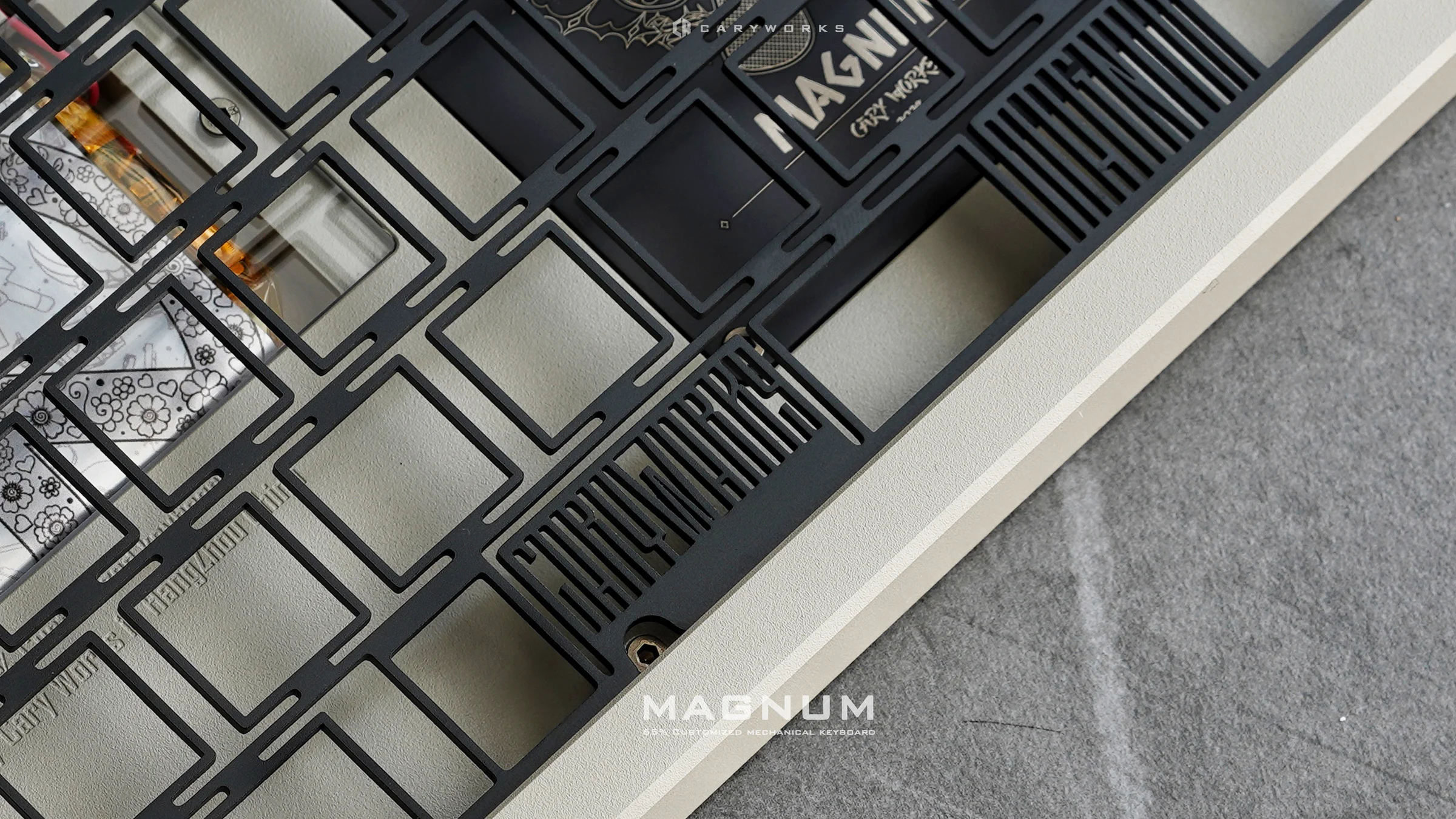

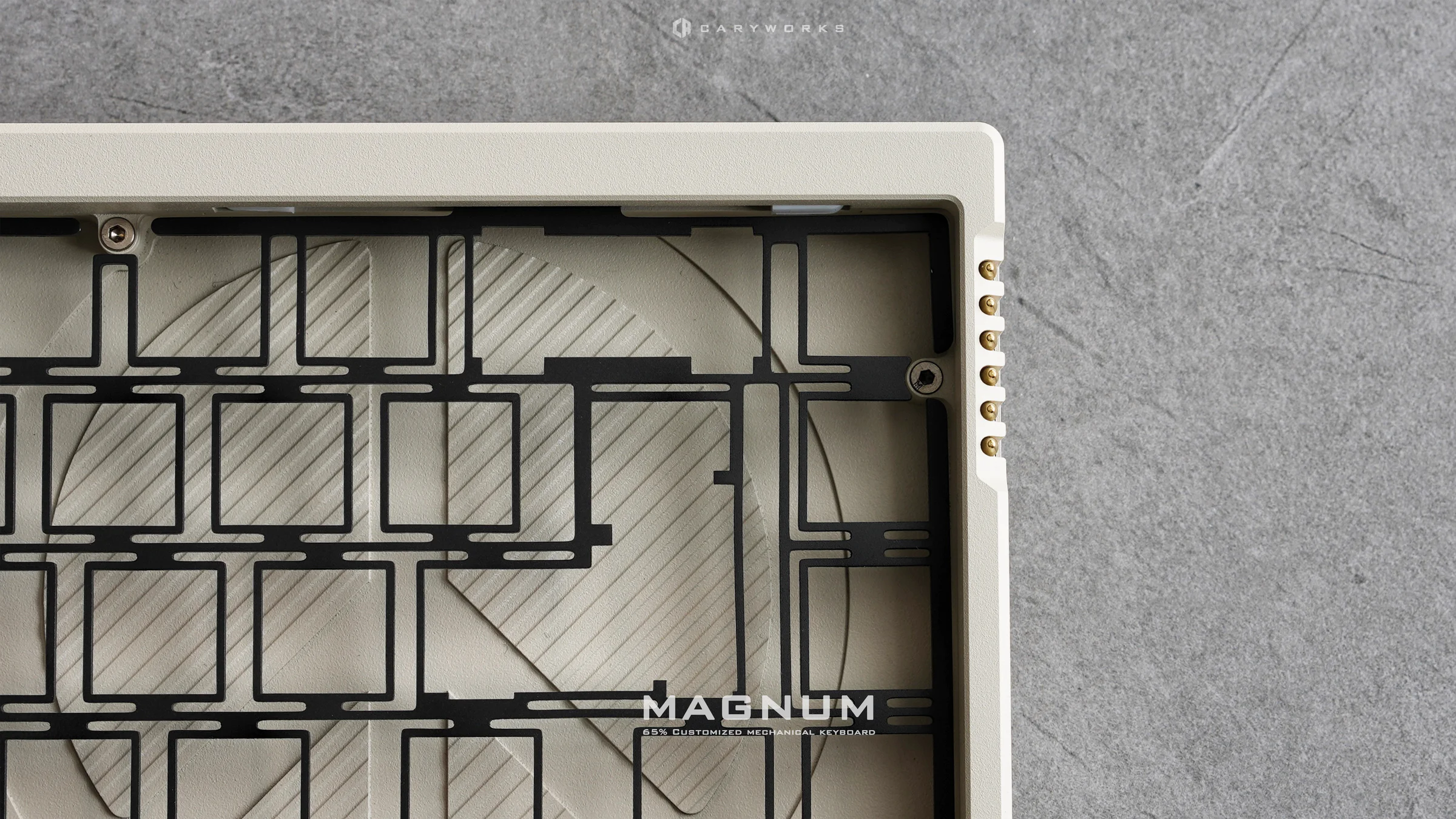

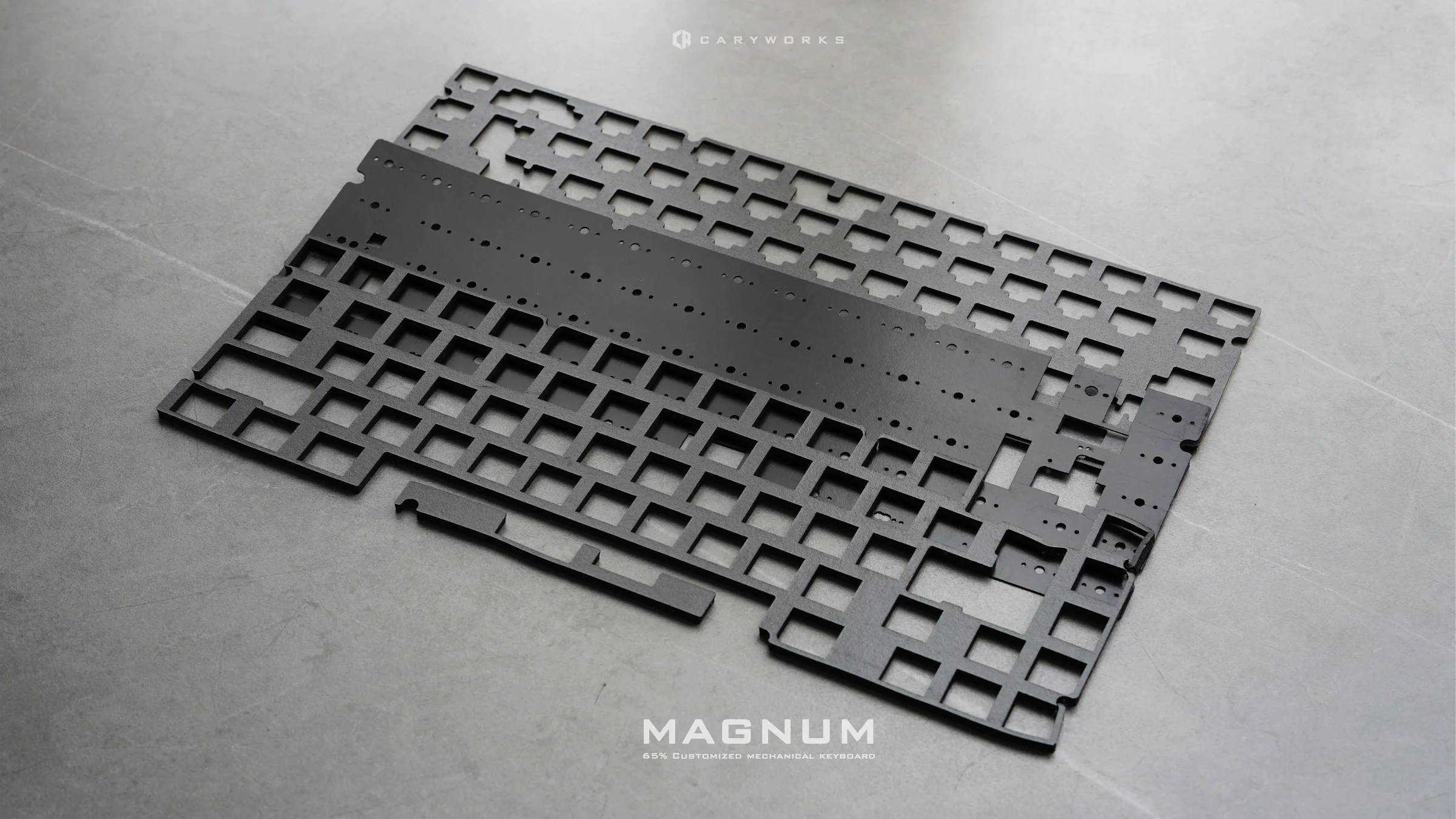

�����Aluminum alloy spring structure plate;
�����Poron switch spacer;
�����IXPE switch shims;
�����Case Foam

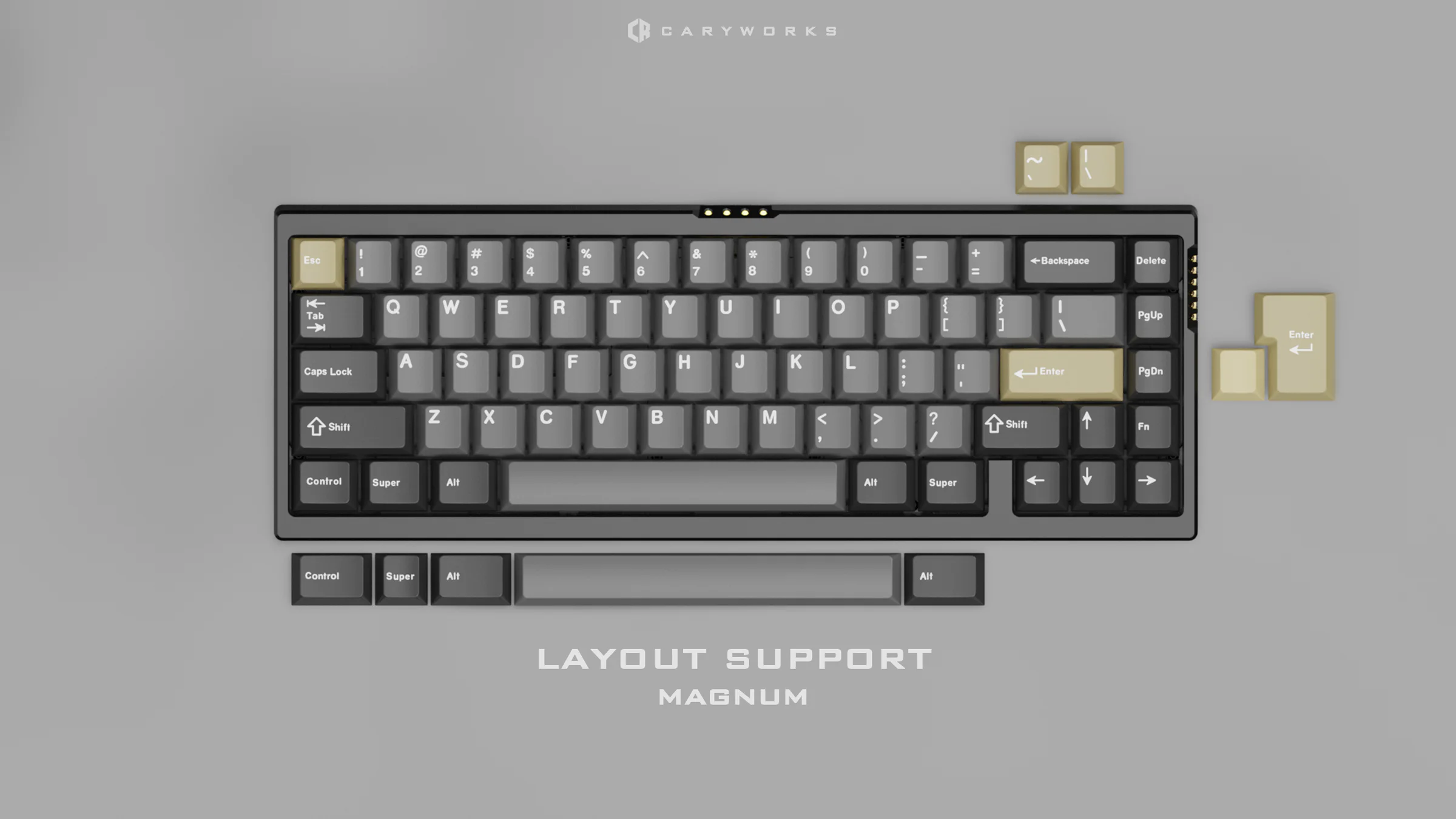

Layout:

Functionality

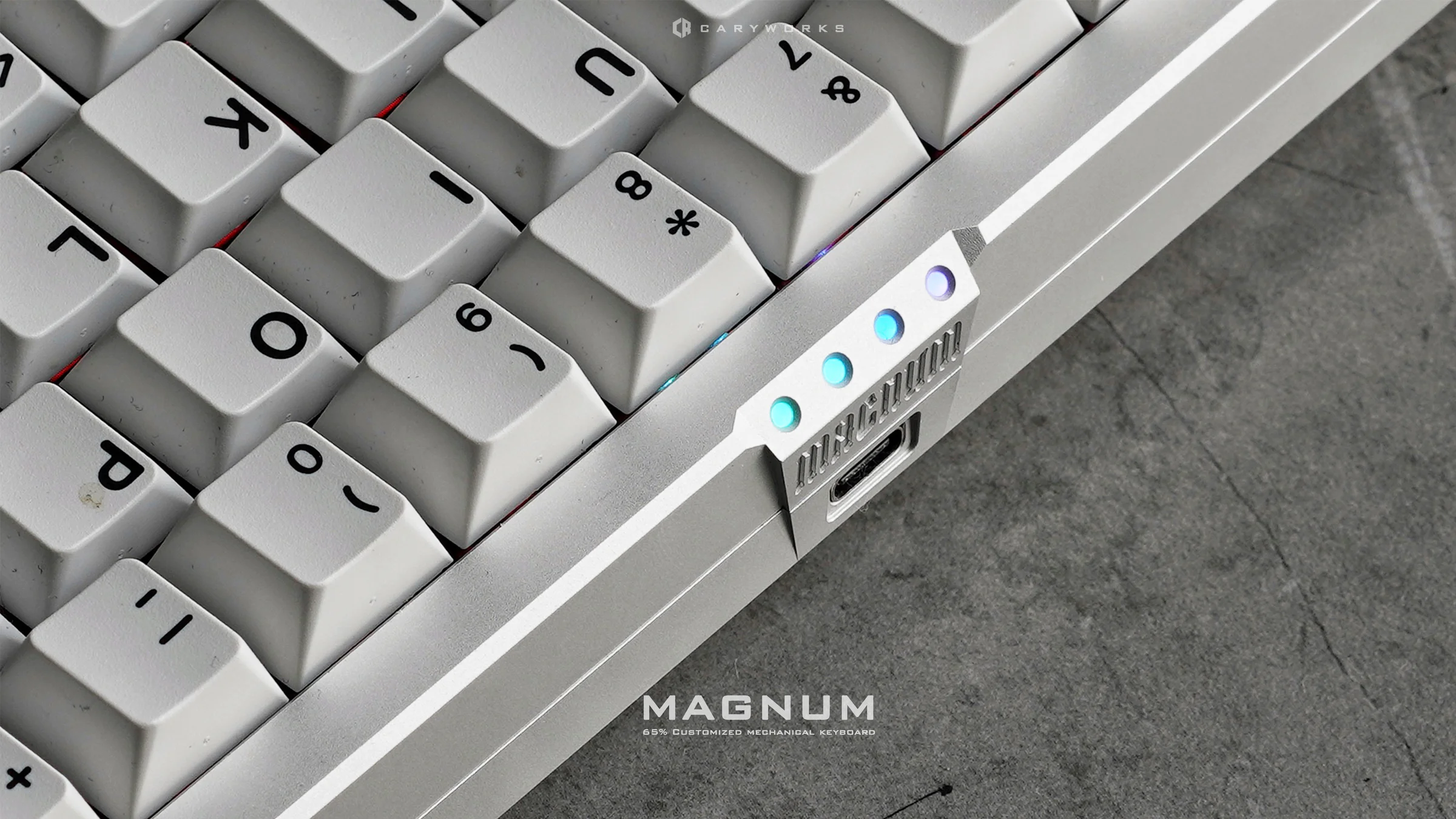

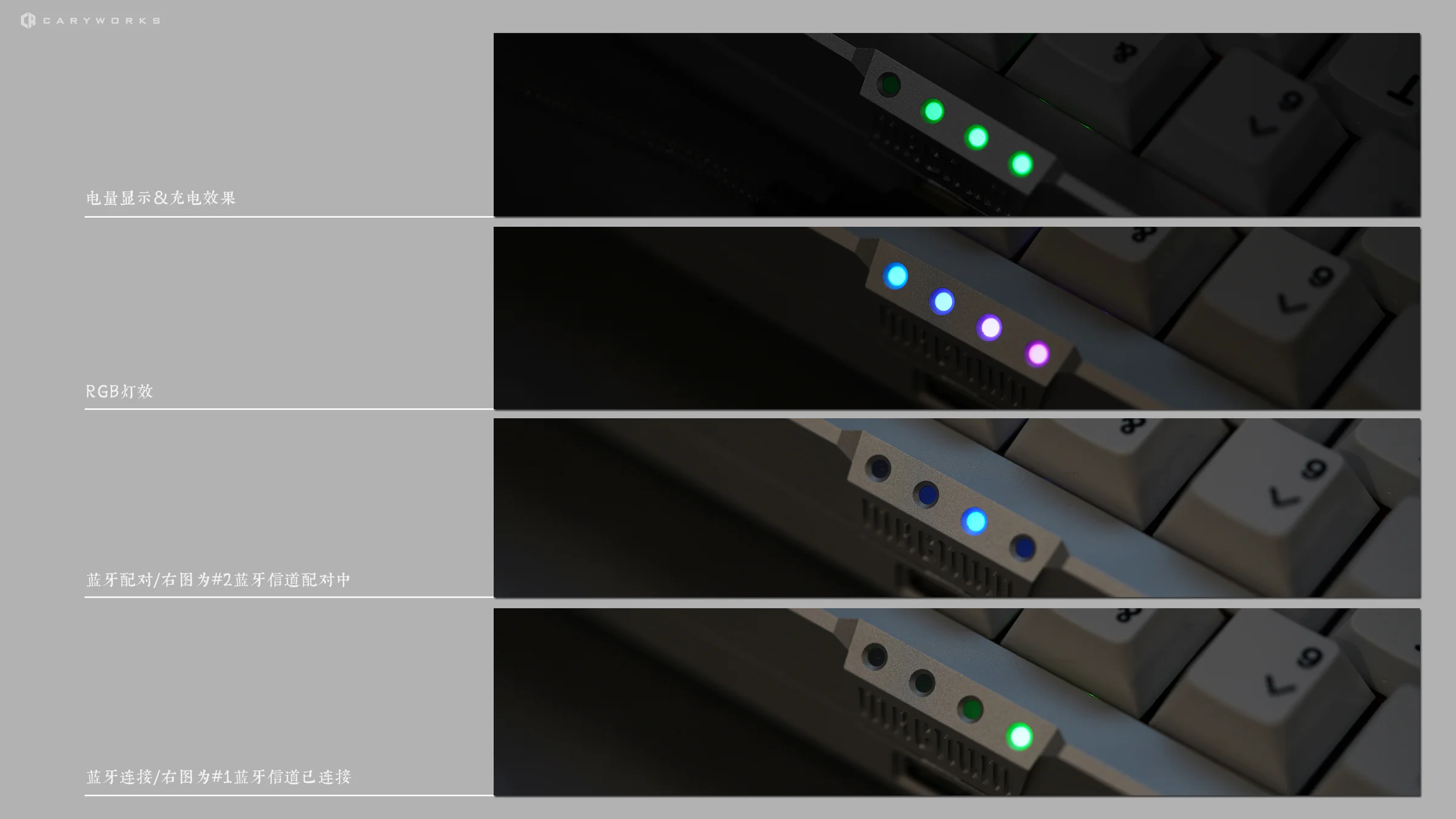

MAGNUM 65 is a dual-mode keyboard that supports 4-channel Bluetooth connections. The current pairing and battery status can be quickly determined through indicator lights.

�����Battery Indications:�
�FN + P: Displays the current remaining battery level.

�Low battery warning: Red flashing indicates low battery when the battery is insufficient.

�����Charging indicator:
Upon connection, it automatically enters charging mode, displaying the charging indicator light effect.

�����Bluetooth pairing:
Long press FN + Z/X/C/V to respectively pair with Bluetooth channels #1, #2, #3, #4. The corresponding indicator light flashes blue until pairing is successful.

�����Bluetooth connection:
Short press FN + Z/X/C/V to respectively connect to Bluetooth channels #1, #2, #3, #4. The corresponding indicator light flashes green until the connection is successful.

�����Normal mode:
RGB enabled, with various preset RGB effects and monochrome effects (colors can be customized via VIA).
RGB disabled, all lighting groups turned off.
*The above lighting effects will override the normal RGB effects.

Colorways

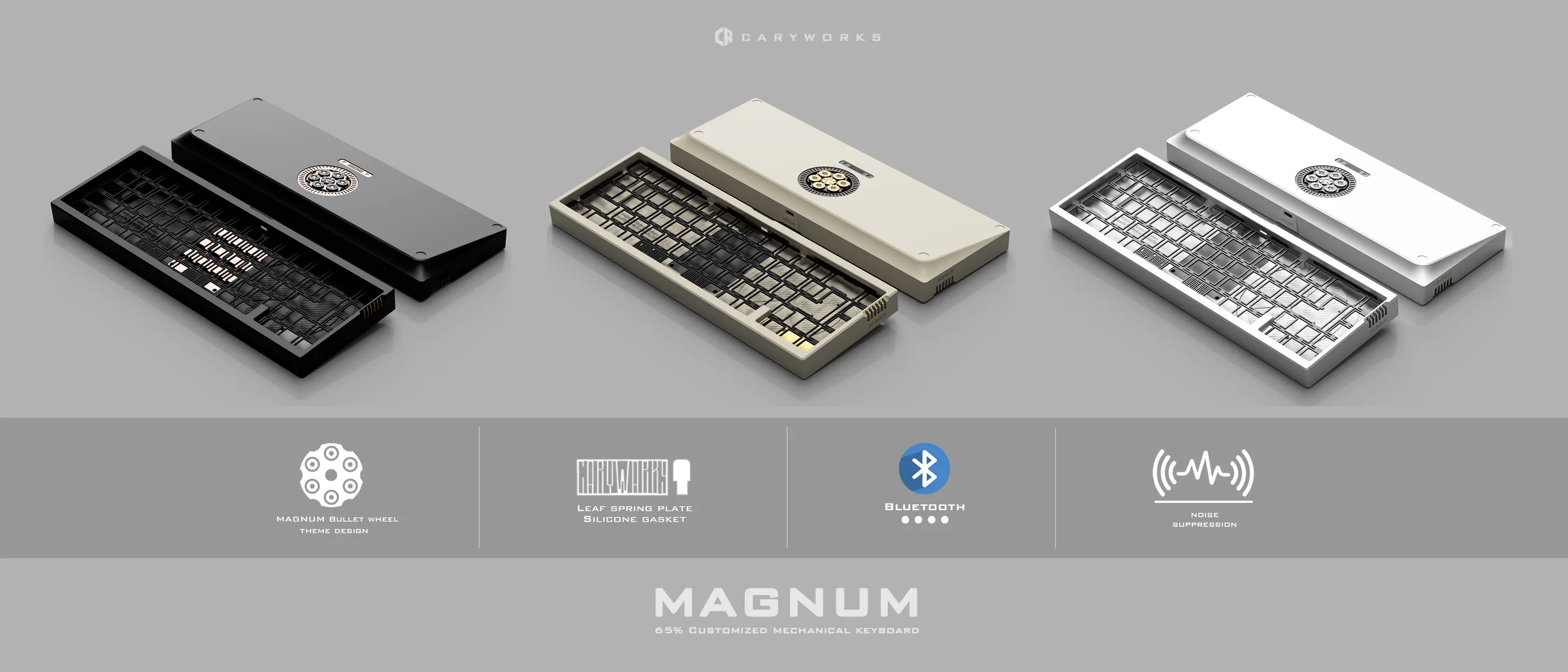

The initial release includes three colors: Desert Yellow, Moonlight Silver, and Shadow Black.

Desert Yellow applies a spray painting process, while Moonlight Silver and Shadow Black apply an anodizing process.

�

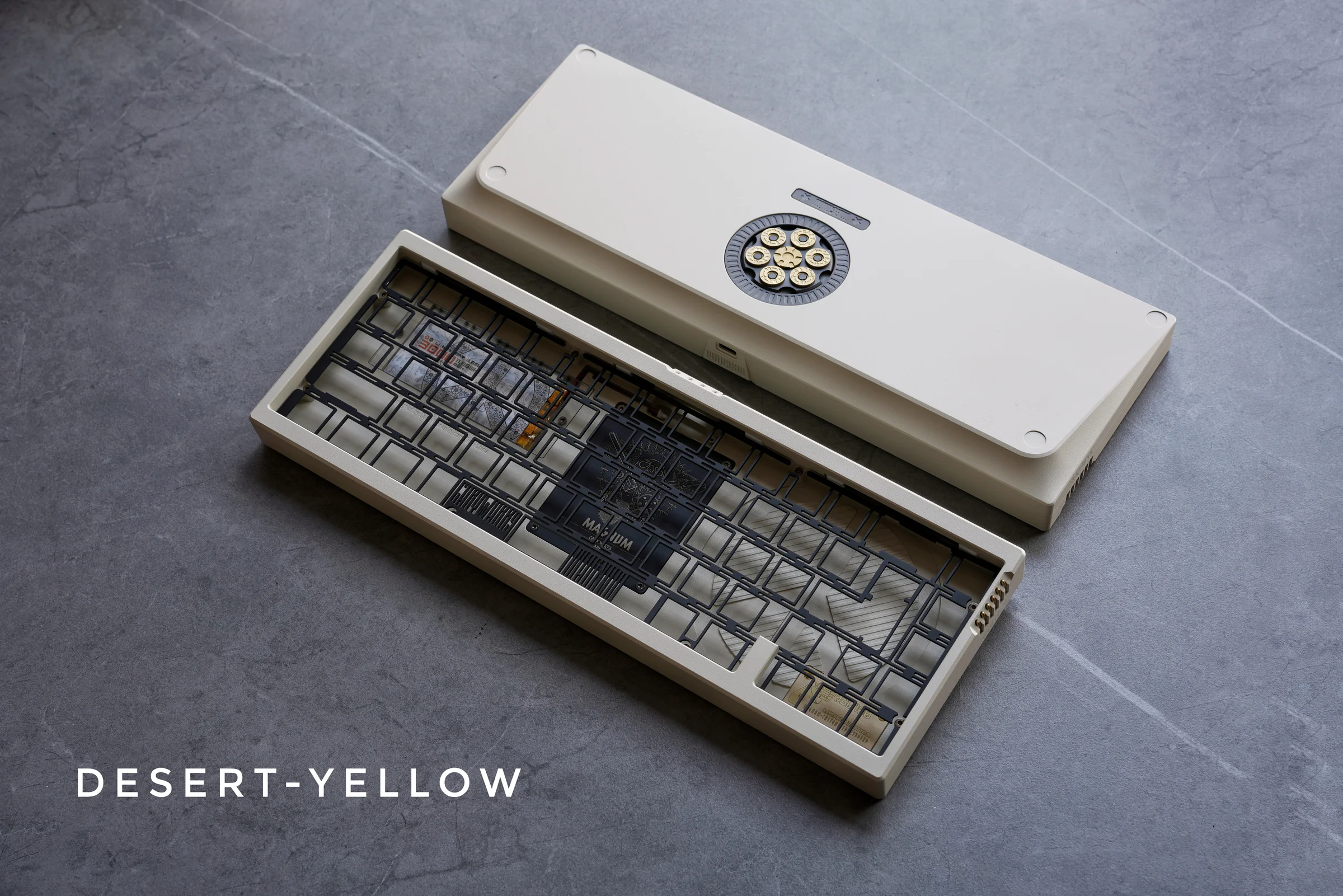

Desert Yellow - Spray Painted

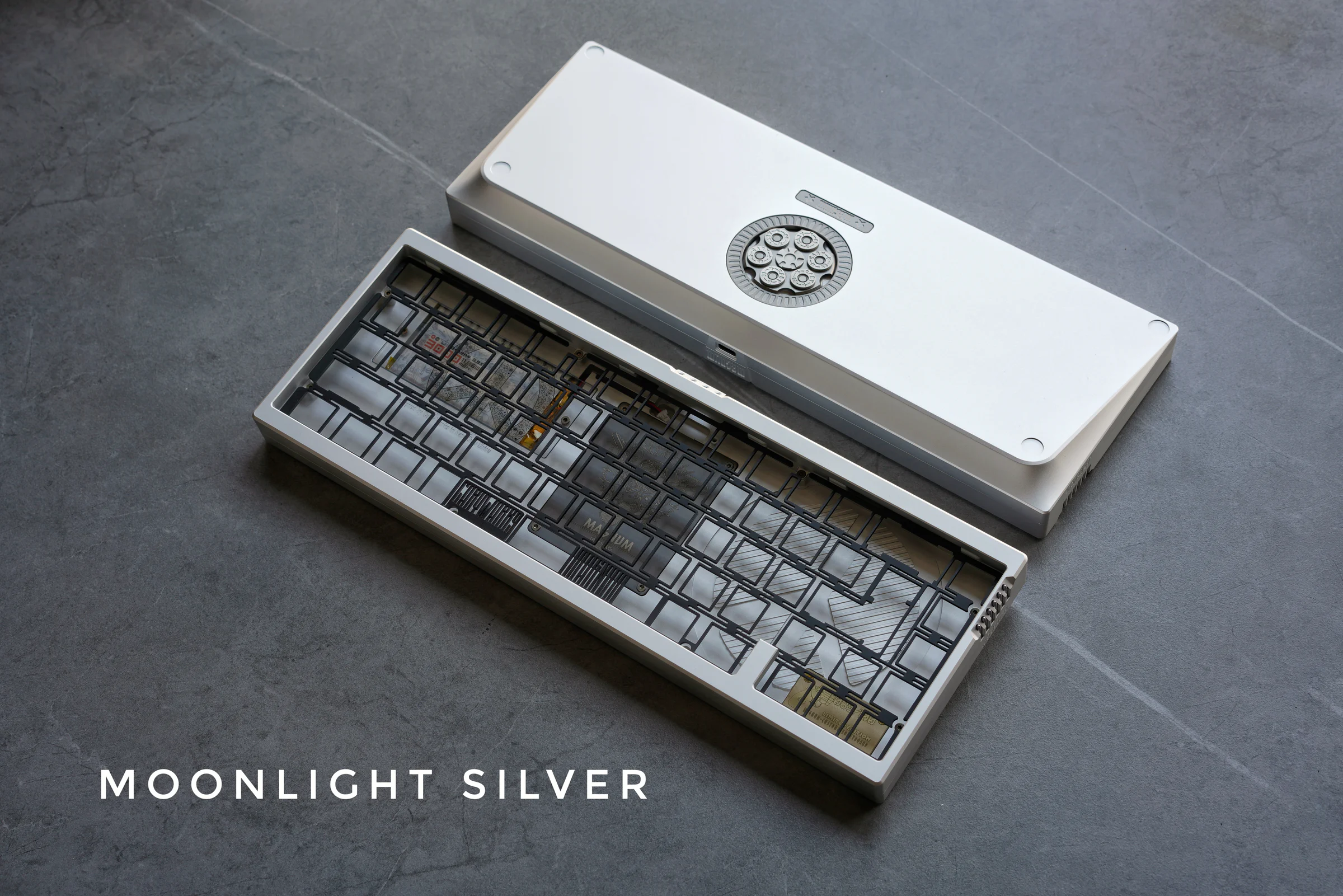

Moonlight Silver - Anodized

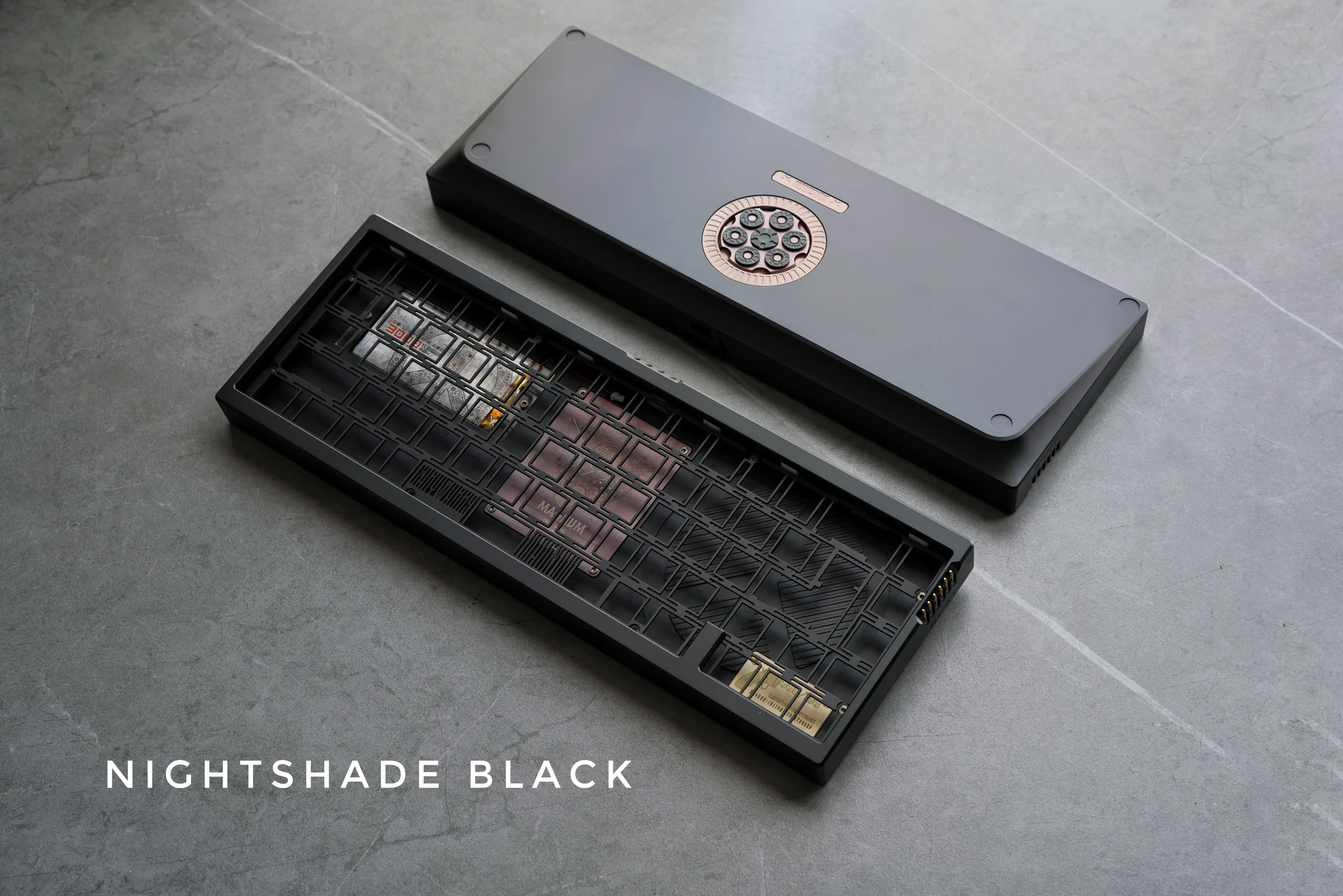

Nightshade Black - Anodized

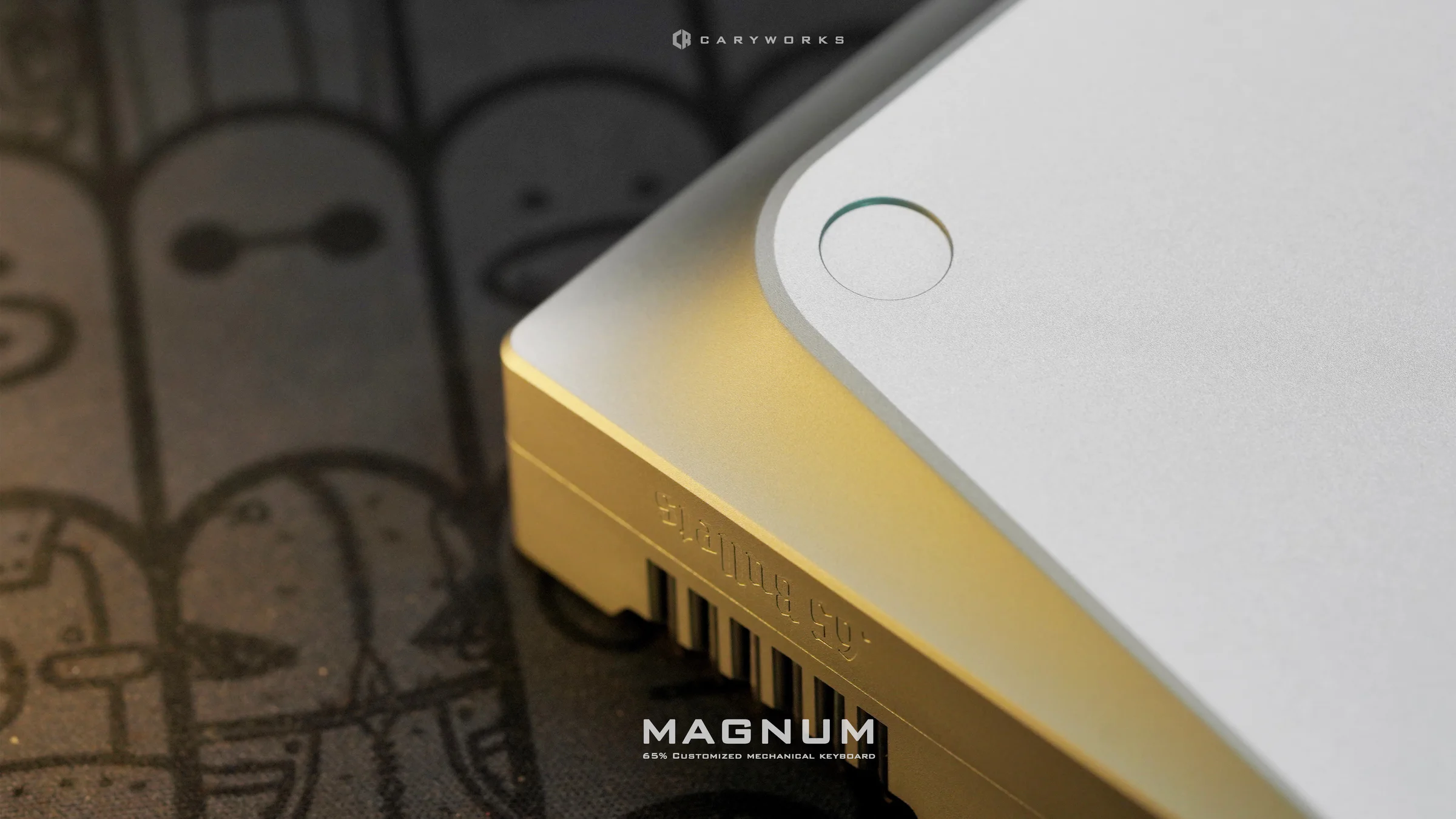

Additional Photos:

Packaging

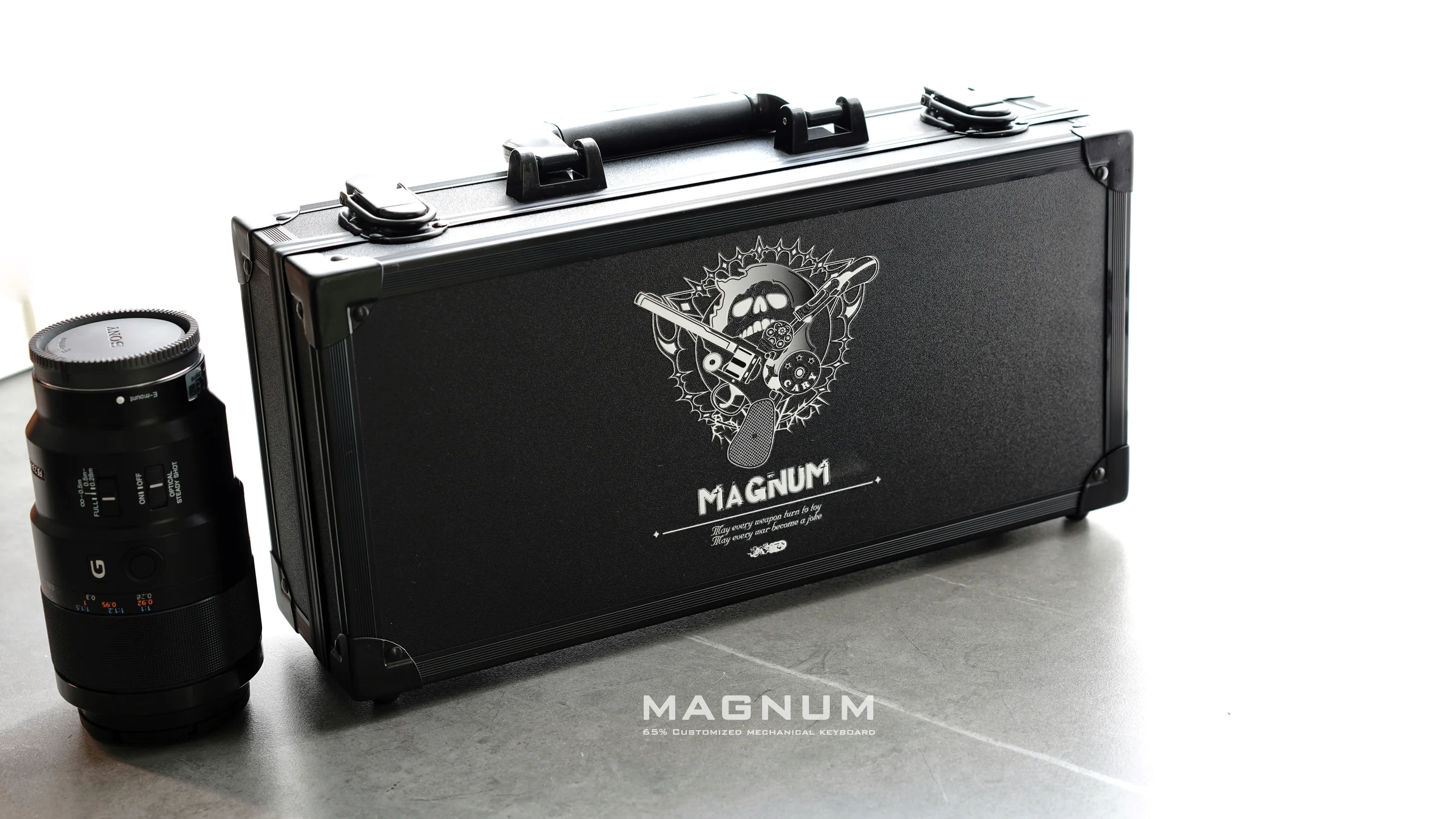

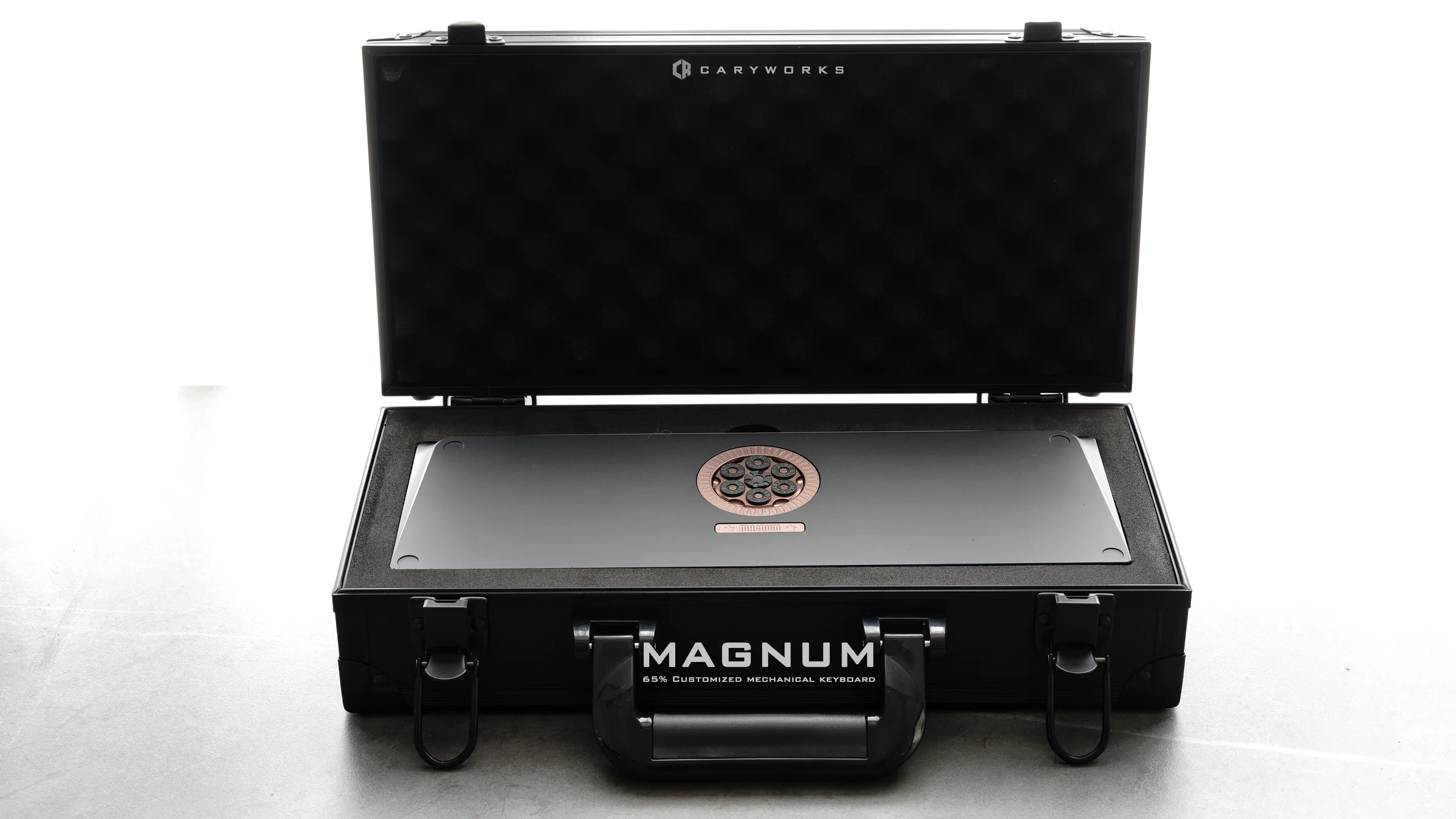

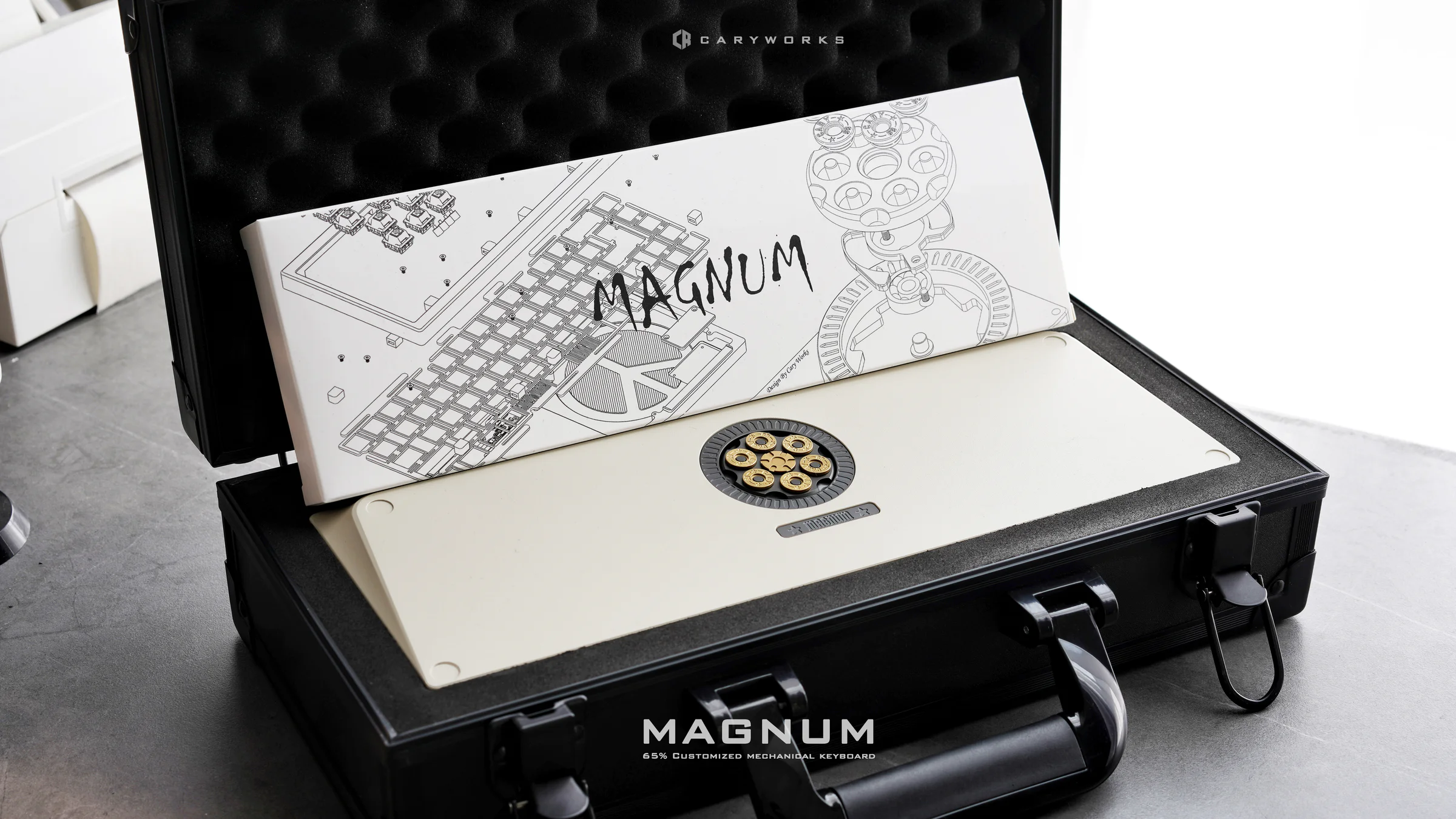

To stay within the 'military' theme, a military-style case has been designed. The aluminum portable case houses the Magnum 65 in a 'laying down' configuration with the lower section of the case acting as the storage unit for the accessory pack which will be used to store keycaps.

�

Q&A

Q: Can the left wheel behind the kit move?
A: The magazine wheel at the back is designed to be movable. It achieves a ratchet effect through customized pawls and bearings, allowing for a unidirectional tactile rotation.

Q: Are the kit colors fixed combinations?
A: The official configurations will be fixed, but participants in the pre-order group can additionally purchase counterweights for the left wheel and side magazines.
